High Quality Touch Screen Bridge Cutting Machine for Marble for Stone Cutting

Product Description

Product Description

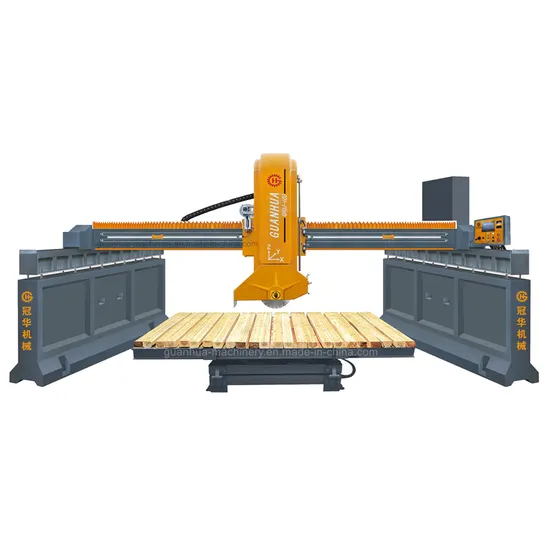

High-Quality Touch Screen Bridge Cutting Machine for Marble for Stone Cutting
1. bridge cutting machine adopts microcomputer control system and human-machine interface, combined with ultra-high precision
rotary encoder to locate an infrared device uses an inverter to control left-right feeding and adjusts the speed according to the
stone material.
2. The electroniccontroling cabinet compries.The machine adopts a PLC controlling system,variable-frequency drive(VFD) which can
provide fine speed regulation, infrared checking, and calibration instruments, touching the operating system.
3. With a precision rotary encoder and the infrared liner, cutting left and right adopts the frequency converter to control
The speed can be adjusted according to the stone material
4. Lift up and down adopts hydraulic, the high speed moving parts adopt imported high-quality spare parts, so it cutting with
high efficiency, high cutting precision, high stability, easy and flexible operation, etc

Product Parameters

No	Product name	Stone countertop bridge-cutting machinery
1	Blade Diameter	350-800MM
2	Max. working dimension	3200*3200*250mm
3	workbench rotating degree	0°-90°+45°/ 0°-45°-90°-360° Optional
4	Worktable tilting	85 degree
5	Gross power	27.3kw
6	Water consumption	3.6m³/h
7	Control method	PLC control
8	Control Panel	Touch screen

Detailed Photos
Company Profile

Guanhua Machinery Co., Ltd. was built in the beautiful city of Quanzhou, China. we are devoted to providing a one-stop-shop for system products of stone processing, ranging from the quarrying, cutting, grinding, profiling, and polishing machines like block cutting machines, stone profiling machines, stone quarry machines, stone bridge saws, stone polishing machines, and CNC machine, etc; consumables parts like diamond segment, diamond cutting blade, polishing wheels, etc.

Our Partners



Exhibition
Packaging & Shipping


FAQ
Q: Are you a manufacturer? A: Yes, we have been a professional and top stone machine manufacturer for more than 15 years in China. Also, we have many authorized agents all over the world to take care of machines after selling service. Q: Can I get a machine according to my requirements? A: Sure. Welcome OEM and ODM orders. Q: This is the first time I have used this kind of machine, is it easy to operate? A: There are guide videos that show how to use the machine and an English instruction manual sent to you with the machine. If there is still have any questions, we will provide a free professional online guide for you until you can use the machine well. Q: What's your MOQ and delivery? A: Our MOQ is 1 set. We could send the machine to your country port or to the door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you. Q: How is your after-sales service? A: We offer Machine Lifelong's free online guide service. And many countries we have local dealers to do machine installation and maintenance. Q: If my machine is broken. Can you repair it for me? A: Yes, many machines have remote troubleshooting functions, we can solve this by remote control and video guide. For common problems, we have professional guidelines to show how to replace the parts, and for the countries that our agents cover, they will repair them for you as well.

---
