10 Ton Heavy Duty Hydraulic Scissor Lift Table Loading Dock Table for Sales

Product Description

Product Description

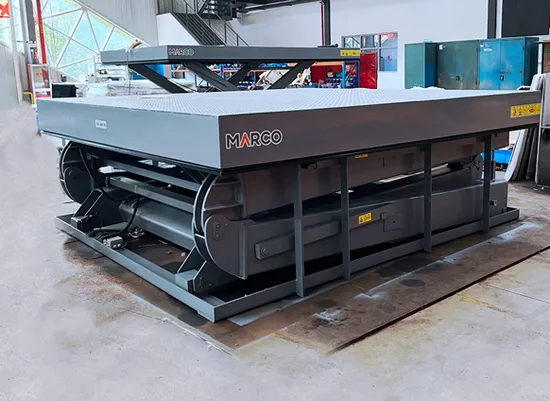

Loading dock lift table is specially designed to withstand the point loads, when the vehicles cross the lift table. It is mainly used on loading / unloading areas, such as warehouse, loading bay. It can used for outdoor.Different from other type of lift table, Loading dock table has standard factors as below:Tear platform, oil filled minus side on cylinder, reinforced top frame, service hatch on top for power pack maintenance, Landing pin on base frame, two paint process with thickness 120um.
Product Parameters

Model No.	M6.5-100270-D22HK	Capacity	10000kg
Platform size	3000X3000mm	Base Frame	3000x3000mm
Min. Height	1100mm	Lifting Height	2700mm
Model Type	stationary	Lift Time	60s
Color	Grey/green/ blue/others	Product name	refer to product
Specifications	Customizable	Application	material handling
Power Voltage	380V 50Hz	Control Voltage	24V DC
Delivery Time	1 month	Package	exported case
Trademark	Marco	HS Code	84289090
Orgin	Made In China	Production Capacity	100/month
Certificate	ISO9001, CE, ISO3834,	Design standard	EN1570-1-2011

Detailed Photos
Company Profile
Our Workshop
Certifications
Exhibition
Packaging & Shipping

---
