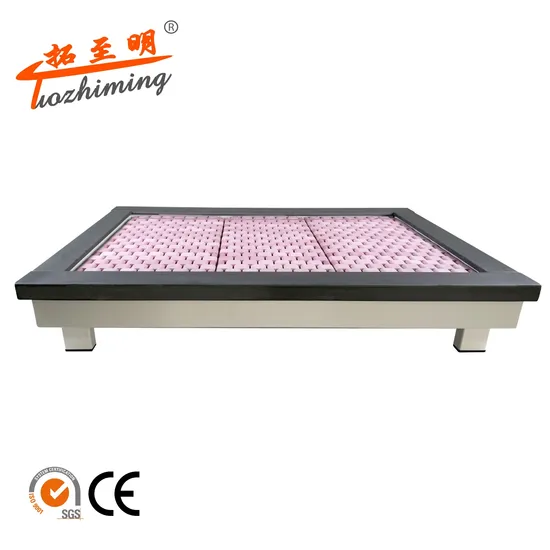

Voltage-Adjustable Lab Electric Hotplate 500 Degrees Td465

Product Description

Product Introduction Our products are widely used for sample baking, drying and sample digestion test, is a necessary tool for geological, metallurgical, environmental protection, agriculture, grain and cooking oil, forestry, food, medical and health, biochemical and other laboratories, as well as teaching and research. Sample digestion before chemical analysis of soil, feed, plants, seeds, heavy metals, ore. It is an ideal equipment of sample preparation for analytical instruments such as AA, ICP, ICP-MS, and atomic fluorescence. It can also be used for pretreatment and acid removal treatment of microwave digestion.
Product Features Fast temperature rising
The time from Room Temp. to Max Temp. will take 7-9 minutes.
High temperature resistance
Gradient temperature control, Max. temperature is 500°C.
Anti-corrosion structure
Anti-corrosion coating, silicon carbide corner beams, high aluminum ceramic combination hotplate.
Good heat insulation
Top-notch ceramic fiber is used for heat preservation, uniform temperature, no damage to the plate surface due to overheating.
Flexible operation
Three in one combination heating (TD465), which can be used separately or in combination.
Optimization and upgrade
It can be used directly or with silicon carbide plate, for temperature uniformity and corrosion resistance improved.
Reasonable design
Separate design, prolong service life, humanized design of the furnace body. Low height is convenient for technicians to take samples.
Safety
No expos ed wires, no open flame, no fire hazards, insulation protection.
Product Parameters

TD Series	TD225	TD345	TD465
Voltage(V)	220
Power(KW)	1.8	3.3	5.5
Working current(A)	8.5	15	25
Max. Temperature(°C)	500
Temperature rising time(min)	7-9
Working size(mm)	200*200	300*400	400*600(200*400*3)
Body dimesions(L*W*H mm)	285*355*110	470*435*110	670*560*110
Control box dimesions(L*W*H mm)	270*185*150	285*185*150	285*225*150
Body net weight(kg)	11	22	36
