US$9,500.00-15,600.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
CKD-WLH-1000/1500/2000
Application
Electronic Industry, Automotive Industry, Manufacturing Industry, Mould
Technical Class
Pulse Laser
Power Density
Heat Conduct Welding
Laser Classification
YAG Laser
Type
Jewellery Laser Welding Machine
Shipping Date
3-5 Work Days After Payment
Transport Package
Wooden Box
Specification
CE passed, Europe/ Asia/ America Standard
Production Capacity
100 Sets/Month
Product Description

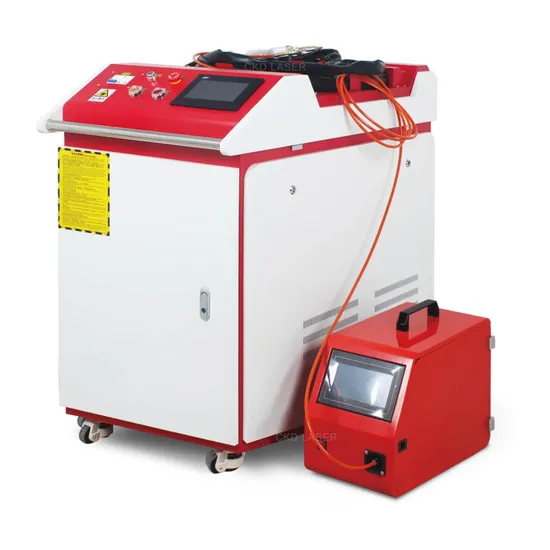

CKD-WLH Series Hand-held fiber laser welding machine
Laser power is optional:1000/1500/2000W
DESCRIPTION:
CKD-WLH series belongs to the newest generation of hand-held laser welding machine so far. Compared with traditional welding, WLD's welding has features of safety, high efficiency, good welding effect, long service life, welding material consumption, healthy and environmental protection. CKD-WLH is with top quality laser source, adopts integrated design, beautiful, stable, easily installed and operated.
It can be widely used in industries of kitchen utensils, doors, windows, fence, stair lifts, steel furniture, billboards, craft gifts, car repair and manufacture, rail transit, aerospace and so on.
CKD-WLH series comes with wire feeder, which greatly improves the welding quality of gaps. It can also work with robot to reduce the labor intensity.
DIMENSION:
Why choose CKD-WLH-1000/1500/2000?
Beautiful welding seam, fast speed, no welding marks, no discoloration, no need for grinding after welding. Good welding system: Expands weld width, solved the disadvantage of small spot. High security: With security alarms, automatically lock laser once the gun moving away the welding parts. Easy controlled welding gun: small and quickly master. Adaptable: Various nozzles, meet different welding demands. Note: Consumables of welding wire is not with the machine , need or not depends on your application.
PARAMETERS:
| Model | CKD-WLH-1000 | CKD-WLH-1500 | CKD-WLH-2000 |
| Laser power | 1000W | 1500W | 2000W |
| Wavelength | 1080±10 nm |
| Power adjustable | 10 ~ 100% |
| Diameter of fiber | 35/50/100um |
| Focus | Red light |
| Fiber cable length | 10 m |
| Welding speed | 0 ~ 120 mm/s |
| Wire feeder | 38~600mm/min |
| Diameter of welding wire | 0.8/1.0/1.2/1.6/2.0mm |
| Cooling model | Water cooling |
| Working environment | 10~40°C, humidity 10~85%, no condensation |
| Total power | 3.5KW | 6KW | 7KW |
| Voltage | 220V |
| Dimension | 1150X630X1080 mm |
| Weight | Around 250kg |
WELDIING SAMPLES:
ATTACHMENTS:
WELDING GUN:
WELDING NOZZLES:
>>
