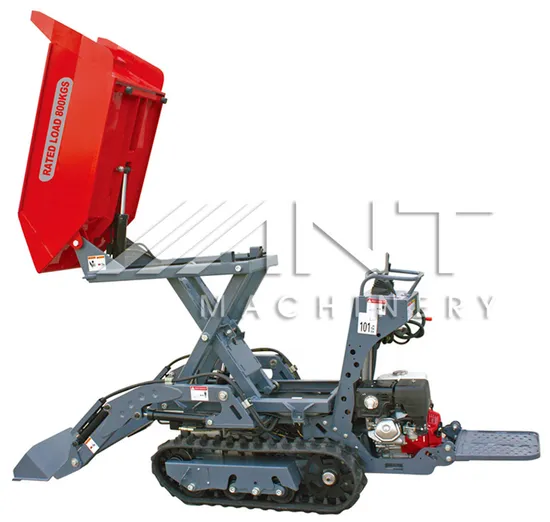

By800 Farming Tractor with Gasoline Engine Tracked Wheel Barrow

Product Description

BY800 farming tractor with gasoline engine tracked wheel barrow
Specifications
*Maximum loading weight is 800kgs.
*Easy and comfortable operation due to the intuitive controls.
*Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.
*Lifting height reaches to 1.4m by X-support.
*Easy climbing and stable crossing the obstacles.
*Spot turning, mini slipping.
Model
BY800
Engine
Honda GX390 13HP gasoline/B&S/Kama Diesel
Type
Hydra-static
Operative weight kgs(lbs)
800 (1762)
Max travel speed km/h(mph)
0-4.8(0-3.0)
Transmission
Hydraulic pump
2 x variable displ.
Flow Vmin(gpm)
2 x 32.4 (2 x 8.5)
Hydraulic motors
2 x orbital
Brake parking
Mechanical
Hydraulic system
Hydraulic pump
Gear pump
Flow Vmin(gpm)
1 x 13.5 (1 x 3.5)
Hi-flow Vmin(gpm)
1 x 22 (1 x 3.5)
Max pressure bar(psi)
150 (2180)
Main valve
2-3 way
Cooled system
Air-cooled
Skip tipping system
Hydraulic
Tracks
Standard track width mm(in)
180 (7.1)
Track roller
3
Rocking rollers
Yes
Track tensioning
Yes

Model	BY800
Engine	Honda GX390 13HP gasoline/B&S/Kama Diesel
Type	Hydra-static
Operative weight kgs(lbs)	800 (1762)
Max travel speed km/h(mph)	0-4.8(0-3.0)
Transmission
Hydraulic pump	2 x variable displ.
Flow Vmin(gpm)	2 x 32.4 (2 x 8.5)
Hydraulic motors	2 x orbital
Brake parking	Mechanical
Hydraulic system
Hydraulic pump	Gear pump
Flow Vmin(gpm)	1 x 13.5 (1 x 3.5)
Hi-flow Vmin(gpm)	1 x 22 (1 x 3.5)
Max pressure bar(psi)	150 (2180)
Main valve	2-3 way
Cooled system	air-cooled
Skip tipping system	Hydraulic
Tracks
Standard track width mm(in)	180 (7.1)
Track roller	3
Rocking rollers	Yes
Track tensioning	Yes

---
