Diode Module Mdd 95-08/12/14/16/18/20/22 1600V 120A for Supplies for DC Power Equipment

Product Description

Product Description Single and Dual Diode Modules is a replacement
equivalent and alternative semiconductor devciefor Diode Modules IXYS,also known as Diode Modules Littelfuse or Westcode.
Diode Modules are monolithic design with dual and single diode topology.Used in DC and AC circuits with loads to 1200A and reverse pulse voltagesup to 3600V
Product Parameters

Series	Type	IF(AV)M (Tc,ºC)	VRRM	IFSM	I²t	V(TO)	rT	Tvj max	Rth(j-c)	W	Package, Dimensions L×B×H
		A	V	A	kA².s	V	mΩ	ºC	°C/W	g	mm
MDD-Half-bridge circuit (common anode-cathode)
MDD26	MDD26-08N1B	36 (100)	800	650	2.12	0.80	6.1	150	1.00	76	92x20x30
	MDD26-12N1B		1200
	MDD26-14N1B		1400
	MDD26-16N1B		1600
	MDD26-18N1B		1800
MDD44	MDD44-08N1B	59 (100)	800	1150	6.62	0.80	4.30	150	0.59	76	92x20x30
	MDD44-12N1B		1200
	MDD44-14N1B		1400
	MDD44-16N1B		1600
	MDD44-18N1B		1800
MDD56	MDD56-08N1B	71 (100)	800	1400	9.80	0.80	3.00	150	0.51	76	92x20x30
	MDD56-12N1B		1200
	MDD56-14N1B		1400
	MDD56-16N1B		1600
	MDD56-18N1B		1800
MDD72	MDD72-08N1B	99 (100)	800	1700	14.5	0.80	2.30	150	0.35	76	92x20x30
	MDD72-12N1B		1200
	MDD72-14N1B		1400
	MDD72-16N1B		1600
	MDD72-18N1B		1800

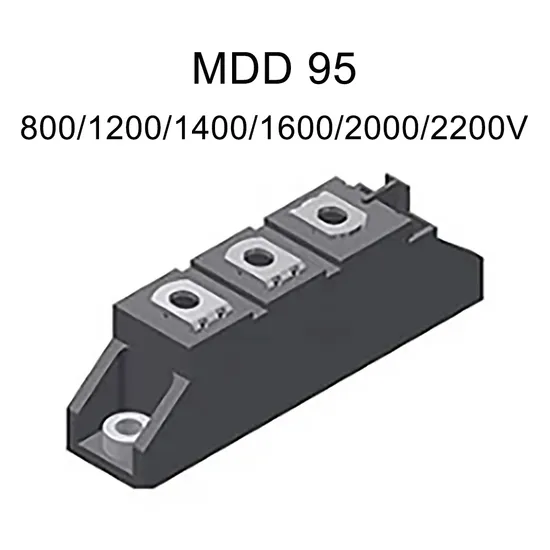

MDD95	MDD95-08N1B	120 (100)	800	2800	39.2	0.75	1.95	150	0.26	76	92x20x30
	MDD95-12N1B		1200
	MDD95-14N1B		1400
	MDD95-16N1B		1600
	MDD95-18N1B		1800
	MDD95-20N1B		2000
	MDD95-22N1B		2200
MDD142	MDD142-08N1	165 (100)	800	4700	110.5	0.80	1.30	150	0.21	76	94x34x30
	MDD142-12N1		1200
	MDD142-14N1		1400
	MDD142-16N1		1600
	MDD142-18N1		1800
MDD172	MDD172-08N1	190 (100)	800	6600	217.8	0.80	0.80	150	0.21	76	94x34x30
	MDD172-12N1		1200
	MDD172-14N1		1400
	MDD172-16N1		1600
	MDD172-18N1		1800
MDD175	MDD175-28N1	240 (100)	2800	8500	361.3	0.74	1.27	150	0.14	680	115x50x52
	MDD175-34N1		3400
MDD200	MDD200-14N1	224 (100)	1400	10500	551.3	0.80	0.60	150	0.13	150	94x34x30
	MDD200-16N1		1600
	MDD200-18N1		1800
	MDD200-22N1		2200
MDD255	MDD255-12N1	270 (100)	1200	9800	480.2	0.80	0.60	150	0.14	680	115x50x52
	MDD255-14N1		1400
	MDD255-16N1		1600
	MDD255-18N1		1800
	MDD255-20N1		2000
	MDD255-22N1		2200
MDD275	MDD275-30N3	245 (100)	3000	4500	101	0.90	1.57	150	0.11	800	115x50x52
	MDD275-36N3		3600
MDD310	MDD310-12N1	300 (100)	1200	11500	661.3	0.75	0.63	150	0.13	254	116x60x32
	MDD310-14N1		1400
	MDD310-16N1		1600
	MDD310-18N1		1800
	MDD310-20N1		2000
	MDD310-22N1		2200
MDD312	MDD312-12N1	310 (100)	1200	10800	583.2	0.80	0.60	150	0.12	680	115x50x52
	MDD312-14N1		1400
	MDD312-16N1		1600
	MDD312-18N1		1800
	MDD312-20N1		2000
	MDD312-22N1		2200
MDD410	MDD410-24N3	360 (100)	2400	7800	304	0.85	0.45	150	0.11	800	115x50x52
	MDD410-28N3		2800
MDD510	MDD510-18N3	445 (100)	1800	10900	594	0.75	0.25	150	0.11	800	115x50x52
MDD600	MDD600-12N1	726 (100)	1200	21800	2380	0.75	0.20	150	0.062	1200	150x60x52
	MDD600-14N1		1400
	MDD600-16N1		1600
	MDD600-18N1		1800
	MDD600-20N1		2000
	MDD600-22N1		2200
MDD630	MDD630-30N2	530 (100)	3000	11700	845	0.80	0.50	150	0.065	1500	150x60x52
	MDD630-36N2		3600
MDD710	MDD710-22N2	578 (100)	2200	12700	806	0.80	0.35	150	0.065	1500	150x60x52
	MDD710-24N2		2400
	MDD710-26N2		2600
MDD810	MDD810-12N2	664 (100)	1200	17300	1480	0.78	0.23	150	0.062	1500	150x60x52
	MDD810-14N2		1400
	MDD810-16N2		1600
	MDD810-18N2		1800
MDD950	MDD950-12N1W	668 (85)	1200	21800	2380	0.75	0.20	150	0.09	1200	150x60x62
	MDD950-14N1W		1400
	MDD950-16N1W		1600
	MDD950-18N1W		1800
	MDD950-20N1W		2000
	MDD950-22N1W		2200
MDD1080	MDD1080-18N7	668 (85)	1800	29100	4230	0.782	0.157	150	0.050	3500	180x77x84
	MDD1080-24N7		2400
	MDD1080-28N7		2800

Detailed Photos
Company Profile Zhejiang Lingshine Electric Co., Ltd (Aigoodele), is a high-tech enterprise integrating production, sales and service. Our main products are frequency converter (VFD), soft starter (LSRQ), solid state relay (SSR), solid state voltage regulator (LSCR), high power rectifiers and so on (KP, ZP, MTC, MDS, MDQ, MDC, MDK, ETC). These products have been widely used in energy, petroleum, metallurgy, chemical industry, construction, plastics, textile, water supply, paper making, mining, printing and many other industrial fields. In addition, our products not only perform well in the domestic market, but have also been exported to dozens of countries and regions in Asia, Africa, Europe and other continents, winning wide international recognition.
We look forward to cooperating with every customer, welcome your guidance and suggestions, and work together to create a more brilliant future.
FAQ Q1.Can you provide price sheet and catalog to me ?We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.
Q2.Can I get some samples?
Yes,Sample order is available for quality check and market test .but you need to pay the sample fee and shipping cost
Q3.How long is your lead time?2-3 days for the stocks items, mass production generally needed 1-2 weeks.
Q4.What's your payment terms?
We usually accept all kinds of payment terms.Such as T/T,L/C,Western Union.Cash.
Q5.What's your warranty terms?
We offer 12 months warranty time.
Q6.Do you have the products in stock?
Depends on your request,We have standard models in stock.Some special products and big order will be newly produced according to your order.
Q7 How about your payment and shipment?Payment: We accept T/T, Western Union, Paypal, Cash etc.We usually ship via DHL, UPS, FedEx or TNT, SF for small order and via ocean for bulk order according to your requirement.
Q8.How does your factory do the quality control?
Quality is priority,we always attach the importance to quality control from the beginning to the end of the production.every product will be fully assembled and carefully tested before packing and shipping.

---
