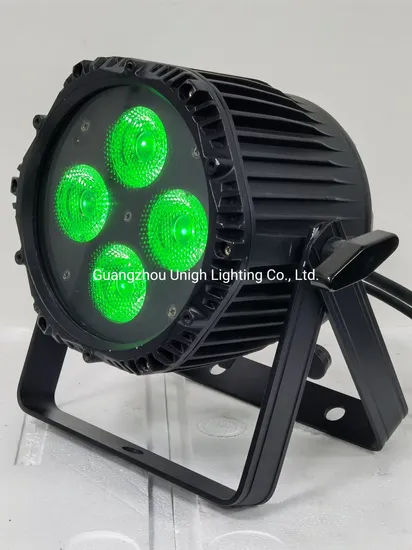

4 X 20 W PAR Light

Product Description

4 X 20 W Par Light
Specifications

Input power	AC100-240V 50/60 Hz
Power consumption	40W
LED	4 pcs 20W RGBLAC LED
Light effect	pure color ,light is evenly spread
DMX channel	2/3/6/9/11 channel
Display	Touch panel menu with LCD display
Control mode	DMX512/Master-Slave/Auto run/IR remote control
0-100% linear dimmer
With RDM function
IP-Rating	IP65
product size	220×280×230mm
packing size	290×290×275mm
N.W	5.2kg
G.W	6.2kg

Channel modes:
2 channel mode

2 CH Mode
Ch.	Function	Values				Sub-Group
1	Dimmer	000	-	255	0% to 100%	Dimmer
2	Full White RGBW	000	-	255	7500K -2700K @ Full on

3 channel mode

3 CH Mode
Ch.	Function	Values				Sub-Group
1	Dimmer	000	-	255	0% to 100%	Dimmer
2	Strobe functions	000	-	005	Strobe open	Multifunctional-Strobe
		006	-	010	Strobe closed
		011	-	033	Puls Random, slow -> fast
		034	-	056	Ramp up Random, slow -> fast
		057	-	079	Ramp down Random, slow -> fast
		080	-	102	Random Strobe Effect, slow -> fast
		103	-	127	Strobe Break Effekt, 5s…..1s (Short burst with break)
		128	-	250	Strobe slow -> fast <1Hz - 20Hz
		251	-	255	Strobe open
3	Colour Macro (override RGBLAC)	000	-	010	Colour off	Colour Macro
		011	-	013	Color1
		014	-	016	Color2
		017	-	019	Color3

		020	-	022	Color4
		023	-	025	Color5
		026	-	028	Color6
		029	-	031	Color7
		032	-	034	Color8
		035	-	037	Color9
		038	-	040	Color10
		041	-	043	Color11
		044	-	046	Color12
		047	-	049	Color13
		050	-	052	Color14
		053	-	055	Color15
		056	-	058	Color16
		059	-	061	Color17
		062	-	064	Color18
		065	-	067	Color19
		068	-	070	Color20
		071	-	073	Color21
		074	-	076	Color22
		077	-	079	Color23
		080	-	082	Color24
		083	-	085	Color25
		086	-	088	Color26
		089	-	091	Color27
		092	-	094	Color28
		095	-	097	Color29
		098	-	100	Color30
		101	-	105	Color31
		106	-	110	Color32
		111	-	115	Color33
		116	-	120	Color34
		121	-	125	Color35
		126	-	127	Colour Jumping Stop
		128	-	191	Colour Jumping Speed slow -> fast / Colour 1 -> 12
		192	-	255	Colour Fading Speed slow -> fast / Colour 1 -> 12

6channel mode

6 CH Mode

		047	-	049	Color13
		050	-	052	Color14
		053	-	055	Color15
		056	-	058	Color16
		059	-	061	Color17
		062	-	064	Color18
		065	-	067	Color19
		068	-	070	Color20
		071	-	073	Color21
		074	-	076	Color22
		077	-	079	Color23
		080	-	082	Color24
		083	-	085	Color25
		086	-	088	Color26
		089	-	091	Color27
		092	-	094	Color28
		095	-	097	Color29
		098	-	100	Color30
		101	-	105	Color31
		106	-	110	Color32
		111	-	115	Color33
		116	-	120	Color34
		121	-	125	Color35
		126	-	127	Colour Jumping Stop
		128	-	191	Colour Jumping Speed slow -> fast / Colour 1 -> 12
		192	-	255	Colour Fading Speed slow -> fast / Colour 1 -> 12

9 CH Mode
Ch.	Function	Values				Sub-Group
1	Dimmer	000	-	255	0% to 100%	Dimmer
2	Strobe functions	000	-	005	Strobe open	Multifunctional-Strobe
		006	-	010	Strobe closed
		011	-	033	Puls Random, slow -> fast
		034	-	056	Ramp up Random, slow -> fast
		057	-	079	Ramp down Random, slow -> fast
		080	-	102	Random Strobe Effect, slow -> fast
		103	-	127	Strobe Break Effekt, 5s…..1s (Short burst with break)
		128	-	250	Strobe slow -> fast <1Hz - 20Hz
		251	-	255	Strobe open
3	Red	000	-	255	0% to 100%	Red
4	Green	000	-	255	0% to 100%	Green
5	Blue	000	-	255	0% to 100%	Blue
6	Lemon Light	000	-	255	0% to 100%	Lemon Light
7	Amber	000	-	255	0% to 100%	Amber
8	Cyan	000	-	255	0% to 100%	Cyan
9	Colour Macro ((override RGBLAC Cover up 3-8channels at startup)	000	-	010	Colour off	Colour Macro
		011	-	013	Color1
		014	-	016	Color2
		017	-	019	Color3
		020	-	022	Color4
		023	-	025	Color5
		026	-	028	Color6
		029	-	031	Color7
		032	-	034	Color8
		035	-	037	Color9
		038	-	040	Color10
		041	-	043	Color11
		044	-	046	Color12

		047	-	049	Color13
		050	-	052	Color14
		053	-	055	Color15
		056	-	058	Color16
		059	-	061	Color17
		062	-	064	Color18
		065	-	067	Color19
		068	-	070	Color20
		071	-	073	Color21
		074	-	076	Color22
		077	-	079	Color23
		080	-	082	Color24
		083	-	085	Color25
		086	-	088	Color26
		089	-	091	Color27
		092	-	094	Color28
		095	-	097	Color29
		098	-	100	Color30
		101	-	105	Color31
		106	-	110	Color32
		111	-	115	Color33
		116	-	120	Color34
		121	-	125	Color35
		126	-	127	Colour Jumping Stop
		128	-	191	Colour Jumping Speed slow -> fast / Colour 1 -> 12
		192	-	255	Colour Fading Speed slow -> fast / Colour 1 -> 12

11channel mode

11 CH Mode 2
Ch.	Function	Values				Sub-Group
1	Dimmer	000	-	255	0% to 100%	Dimmer
2	Strobe functions	000	-	005	Strobe open	Multifunctional-Strobe
		006	-	010	Strobe closed
		011	-	033	Puls Random, slow -> fast
		034	-	056	Ramp up Random, slow -> fast
		057	-	079	Ramp down Random, slow -> fast
		080	-	102	Random Strobe Effect, slow -> fast

		103	-	127	Strobe Break Effekt, 5s…..1s (Short burst with break)
		128	-	250	Strobe slow -> fast <1Hz - 20Hz
		251	-	255	Strobe open
3	Red	000	-	255	0% to 100%	Red
4	Green	000	-	255	0% to 100%	Green
5	Blue	000	-	255	0% to 100%	Blue
6	Lemon Light	000	-	255	0% to 100%	Lemon Light
7	Amber	000	-	255	0% to 100%	Amber
8	Cyan	000	-	255	0% to 100%	Cyan
9	Colour Macro ((override RGBLAC Cover up 3-8channels at startup)	000	-	010	Colour off	Colour Macro
		011	-	013	Color1
		014	-	016	Color2
		017	-	019	Color3
		020	-	022	Color4
		023	-	025	Color5
		026	-	028	Color6
		029	-	031	Color7
		032	-	034	Color8
		035	-	037	Color9
		038	-	040	Color10
		041	-	043	Color11
		044	-	046	Color12
		047	-	049	Color13
		050	-	052	Color14
		053	-	055	Color15
		056	-	058	Color16
		059	-	061	Color17
		062	-	064	Color18
		065	-	067	Color19
		068	-	070	Color20
		071	-	073	Color21
		074	-	076	Color22
		077	-	079	Color23
		080	-	082	Color24
		083	-	085	Color25
		086	-	088	Color26
		089	-	091	Color27
		092	-	094	Color28
		095	-	097	Color29
		098	-	100	Color30

		101	-	105	Color31
		106	-	110	Color32
		111	-	115	Color33
		116	-	120	Color34
		121	-	125	Color35
		126	-	127	Colour Jumping Stop
		128	-	191	Colour Jumping Speed slow -> fast / Colour 1 -> 12
		192	-	255	Colour Fading Speed slow -> fast / Colour 1 -> 12
10	Colour Temperature (Cover up 3-9channels at startup)	000	-	005	off	Colour Temperature Correction
		006	-	025	2700K
		026	-	045	2900K
		046	-	065	3100K
		066	-	075	3400K
		076	-	095	3700K
		096	-	111	4000K
		112	-	131	4400K
		132	-	151	5000K
		152	-	171	5400K
		172	-	191	5800K
		192	-	211	6400K
		212	-	231	7000K
		232	-	255	7500K
11	Set dimmer curve	000	-	005	no function	Set dimmer curve
		006	-	063	Linear Dimmer Curve
		064	-	127	Exponential Dimmer Curve
		128	-	191	Logarithmic Dimmer Curve
		192	-	255	S-Curve Dimmer Curve
