Automatic Sanding Machine Plywood Sander Wood Polising Machine Door Brush Sanding

Product Description

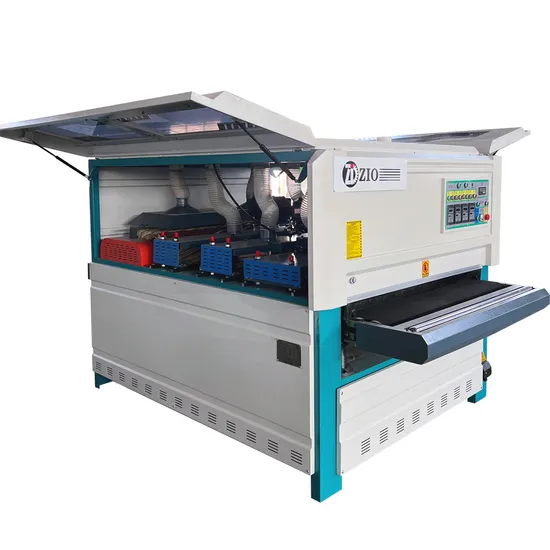

Automatic sanding and polishing machine
1, It is a new practical and efficient wood product surface processing equipment. The machine adopts high-end imported intelligent equipment to completely improve the accuracy of plywood boards polishing, especially the polishing accuracy of primer.

2, this machine is specially used for interior doors, cabinet doors, furniture and other modeling surface polishing equipment. Suitable for all kinds of solid wood, MDF, veneer faced board and other materials straight line (such as door line, door frame, foot line, phase frame, blinds, etc.), L-shaped wood line and wood class regular surface, shaped surface, plane, and 3D shaped surface, primed wood door, cabinet door surface of coarse fine sanding, grinding, polishing.

3, the machine running speed is adjustable, no noise. Circular longitudinal roll and long roll combination sanding, to achieve no dead Angle sanding.

Parameter	630mm	1000MM	1300MM
Maching width mm	<630	<1000	<1300
Maching thickness mm	2-110	2-110	2-110
Processing sheet length mm	>300	>300	>300
Disc motor power kw	1.5	1.5	1.5
Disc swing motor power kw	0.39	0.39	0.39
Longitudinal roller motor power kw	1.5	1.5	1.5
Longitudinal roller swing motor power kw	0.39	0.39	0.39
Long roller motor power kw	2.2	2.2	2.2
Lifting motor power kw	0.37	0.37	0.37
Working air pressure Mpa	0.5	0.6	0.6
Conveyor speed m/s	5-25	5-25	5-25
Disc diameter mm	180	180	180
Longitudinal roller diameter mm	300	300	300
Overall dimension mm	It varies according to the number of shafts ordered
Weight

Detailed Photos
The use of Taiwan imported polishing steel roller, according to the hardness of the sanding material to match different numbers of sandpaper and sisal strips, polishing further refined

The two sets of longitudinal rollers can swing left and right, and the direction of swing can be opposite, so as to achieve 360 degrees without dead Angle grinding, avoiding leakage and wrong sanding
Vertical disc sander (disc sander can swing left and right) sanding to achieve deep cleaning of the gap, equipped with quick replacement joint, easier to replace the disc sander.

More configurations and models
Double sides surface sanding and polising
Sanding belt model
Upper floating primer sander
Packaging & Shipping

---
