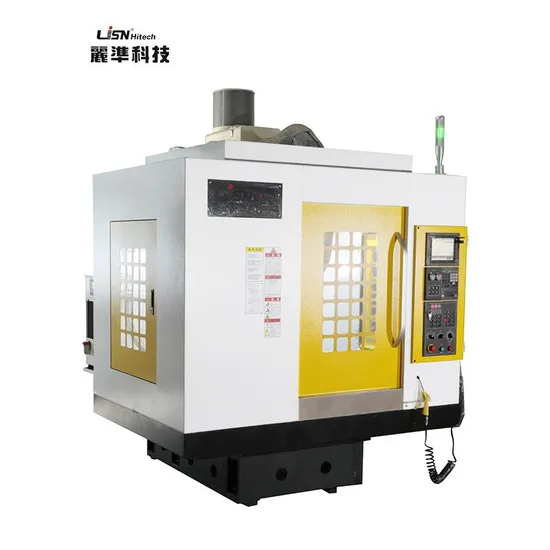

TV600 Small 5 Axis CNC Milling Machine

Product Description

Product Description
Experience unparalleled ease and safety with our machine's user-centric operation design. Our machine features an innovative box-shaped design at the back, supplemented by a spacious tank collecting box. The thoughtful human-centric space design, coupled with a generously wide operating door, ensures the effortless loading and unloading of workpieces. Equipped with an intuitive control panel, a convenient hand wheel, and a highly efficient base chip washing system, this machine optimizes every aspect of the operational process to boost productivity. The spindle motor and spindle are ingeniously engineered for a direct connection, eliminating any noise and vibration issues that are common with belt-driven systems. The inclusion of a low-inertia spindle motor significantly enhances performance, allowing an acceleration from 0 to 20000RPM in just one second. Our advanced Thermal Isolated Direct Drive System effectively prevents heat transfer from the motor to the spindle, substantially reducing spindle temperature and enhancing operational stability.
Detailed Photos
Product Parameters

ITEM	MODELS	TV600
WORKTABLE (WIDTH*LENGTH)	mm	720x400
DISTANCE BETWEEN T SLOTS	mm	3x14x125
MAX LOAD BEARING OF WORKTABLE	kg	200
X/Y/Z AXIS TRAVEL	mm	600/400/300
DISTANCE FROM SPINDLE NOSE TOWORKBENCH	mm	130-480
SPINDLE HOLE TAPER	-	BT30
SPINDLE SPEED RANGE	r/min	20000
TRANSMISSION OF SPINDLE BOX	BELT/DIRECT	Optional
SPINDLE MOTOR POWER	kW	3.7/5.5( Mitsubishi) /5.5/7.5(Fanuc)
X/Y/Z RAPID FEED SPEED	m/min	48/48/48
MAX CUTTING FEED SPEED	mm/min	1-20000
TOOLS MAGAZINE CAPACITY	pcs	21
X/Y/Z POSITION ACCURACY	mm	±0.005
X/Y/Z RE-POSITION ACCURACY	mm	±0.003
MACHINE DIMENSION	mm	1930x2450x2450
MACHINE WEIGHT	kg	3000

Standard Configuration for TV Series
Includes Full Cover Shield, Self-lubrication System, Working and Warning Lights, Self-powered Electrical Shutoff System, Clean Air Gun, Water Tank, Transformer, along with Spindle Air Curtain and Dust Control System. Rigid Tapping / Worktable Cleaning Water Gun
Optional Configuration TV Series Enhance your machine with options like an NC rotary table (4 Axis), CTS, Tool Detection System, Automatic Tool Length Measurement and Damage Detection, 3 Axis Linear Scale, Disc Type Oil-Water Separator, Crawler Chips Remover, Direct Connection Spindle, and Spindle Oil Cooler.
Company Profile

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
