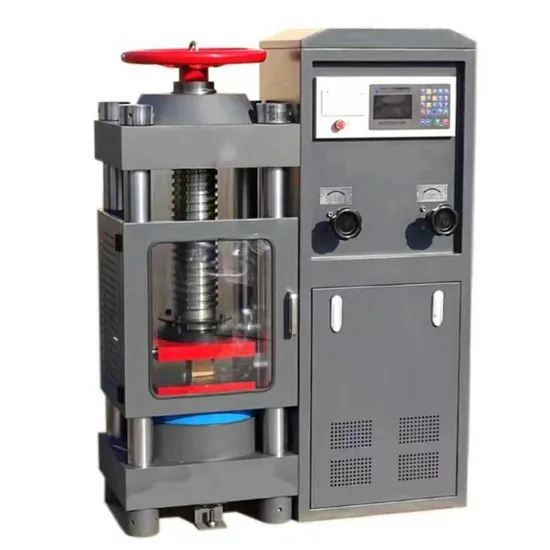

Dye-2000 Concrete Compression Strength Testing Machine C-Tech Brand

Product Description

The DYE-2000 electro-hydraulic pressure testing machine is driven by a hydraulic power source and uses intelligent measurement and control instruments to collect and process test data. It consists of four parts: test host, oil source (hydraulic power source), measurement and control system, and test equipment. The maximum test force is 2000kN, and the accuracy level of the testing machine is better than level 1. DYE-2000 electro-hydraulic pressure testing machine can meet the national standard testing requirements for bricks, concrete, cement and other materials, with manual loading and digital display of loading force and loading speed values. This testing machine has an integrated main engine and oil source structure; it is suitable for compressive testing of cement and concrete as well as concrete flexural testing. With appropriate fixtures and measuring devices, it can meet the splitting and tensile testing of concrete. The testing machine and accessories comply with the requirements of GB/T2611 and GB/T3159 standards.

Technical Parameters	DYE-2000
Maximum test force(KN)	2000
Test accuracy	Level1
Piston stroke(mm)	30mm
Compression surface maximum spacing(mm)	320mm
Diameter of clamp sample(mm)	240mm
power	380V
Host Dimensions(KW)	0.75
size	950*350*1300mm
weight	600kg

---
