High-Quality Suction Crane Supplier Vacuum Board Lifter for Different Panels

Product Description

Product Description

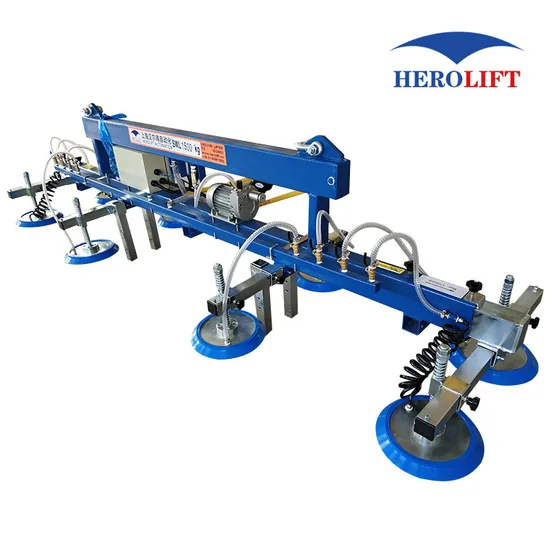

HEROLIFT BLC series- SWL max 3000kg complete and ready to use electric vacuum unit for direct attachment to a bridge crane with a hoist.
The handling of sheets of metal or non-porous materials (plastic, melamine etc) in the production process, can require several people to lift extremely heavy loads and move them quickly and accurately.A single operator can lift large loads weighing up to 2 tonnes.
Herolift'S BLC is a very efficient manipulator of non-porous loads, allowing operators to work independently on lifting panels.

Characteristic
1. Max.SWL 3000KG
Low pressure warning
Adjustable suction cup
Remote control
CE certification EN13155:2003
China Explosion-proof Standard GB3836-2010
Designed according to German UVV18 standard
2.Large vacuum filter, vacuum pump, control box incl start / stop, energy saving system with automatic start/stop of vacuum, electronic intelligent vacuum surveillance, on/off switch with integrated power surveillance, adjustable handle,standard with equipped with bracket for quick attachment of lifting or suction cup.
3.A single person can thus quickly move up to 2 tonnes, multiplying productivity by a factor of ten.
4. It can be produced in different sizes and capacities according to the dimensions of the panels to be lifted.
5.It is designed using high-resistance, guaranteeing high performance and an exceptional lifetime.
Paramenters

Serial No.	BLC1500-12-T	Max capacity	Horizontal handling 1500kg
Overall Dimension	(1.1m+2.8m+1.1m)X800mmX800mm	Power input	380V,3 PHASE Power supply
Control mode	Manual push and pull rod control absorption	Suction and discharge time	All less than 5 seconds; (Only the first absorption time is slightly longer, about 5-10 seconds)
Maximum pressure	85%vacuum degree(about0.85Kgf)	Alarm pressure	60%vacuum degree (about0.6Kgf)
Safety factor	S>2.0;Horizontal absorption	Dead weight of equipment	230kg(approximate)
Power failure Maintaining pressure	After power failure, the holding time of the vacuum system absorbing the plate is >15 minutes
Security alarm	When the pressure is lower than the set alarm pressure, the audible and visual alarm will alarm automatically

Features

Suction pad •Easy replace •Rotate pad head •Suit various working conditions •Protect workpiece surface	Power control box •Control the vacuum pump •Displays the vacuum •Pressure alarm
Vacuum gauge •Clear display •Color indicator •High-precision measurement •Provide security	Quality Raw Materials •Excellent workmanship •Long life •High quality

Specification

SWL/KG	Type	L×W×H mm	Own Weight kg
250	BLA250-4-T	2160×960×910	80
400	BLA400-6-T	2160×960×910	95
500	BLA500-6-T	2160×960×910	95
800	BLA800-8-T	3000×800×600	110
1500	BLA1500-12-T	3000×800×600	140
Powder:220/460V 50/60Hz 1/3Ph(we will provide the corresponding transformer according to the voltage in your country region.)
For optional DC OR AC Motor drive as your requirements

Detail display

1	Telescopic beam	8	Cross beam
2	Main beam	9	Parking bracket
3	Vacuum pump	10	Vacuum gauge
4	General Control box	11	Control handle
5	Lifting hook	12	Push-Pull Valve
6	Air Hose	13	Vacuum Filter
7	Ball Valve	14	Parking bracket for control panel

Function
Both ends of the suction cup holder are retractable
Suitable for occasions with large size changes
Imported oil-free vacuum pump and valve
Efficient, safe, fast and labor-saving
Accumulator and pressure detection ensure safety
The suction cup position is adjustable and can be closed manually
Design conforms to CE standard
Application
This equipment is widely used for laser feeding.
Aluminum Boards
Steel Boards
Plastic Boards
Glass Boards
Stone Slabs
Laminated chipboards
Service cooperation
Since its establishment in 2006, our company has served more than 60 industries, exported to more than 60 countries, and Established a reliable brand for more than 18 years.
Company Profile

Our Advantages

Production Line

Certifications

Packaging & Shipping

FAQ
Q1: How can I get the best machine for me? A: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A: We will have the free technical training, and send you Software Operating Instructions in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
A: We could send free parts to you in warranty period if machines have any problem under "normal use". you need to pay the postage.
Q4: What's the guarantee, in case the machine breaks down?
A: The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q5: How long is the delivery time?
A: For standard machines, it would be 20-30 days; For non-standard machines and customizedmachines according to client s specific requirements, it would be 45 to 60 days.

---
