US$15.00-45.00
|
100 kg
(MOQ)
|
Basic Info.
Product Name
Metal Titanium Product ASTM B 265 Titanium Foil
Material
Titanium or Titanium Alloy
Quality Control
ISO9001; Gjb9001; As9100b; PED
Industrial Standard
GB/T 3622 ASTM B265
Transport Package
Wooden Box
Production Capacity
60000t/a
Product Description

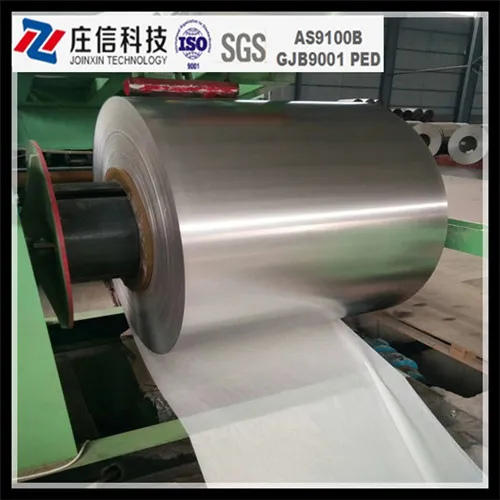

China ASTM B265 Grade11 Gr11 Ti-0.2Pb ELI Titanium Foil with Best Price Available Standards of Titanium Foil
ASTM B265,AMS 4910 ect.
Available Grades of Titanium Foil
Grade 1 Grade 2 Grade3 Grade5 Grade 7 Grade9 Grade12 Grade23
Available Specifications of Titanium Foil
(0.01-0.02) x (30-100) x (≥500)mm
(0.03-0.09) x (50-300) x (≥500)mm
(0.00-0.03) x (50-300) x (≥500)mm
(0.40-0.9.0) x (50-500) x (≥1000)mm
(1.0-2.0) x (50-500) x (≥2000)mm
| Product name | Specification |
| Titanium Ingots | Ф360mm~Ф1020mm,the maximum weight is up to 12t |
| Titanium Slab | (80~400)mm×(~1500)mm×(~2600)mm |
| Titanium Forgings | Weight per piece≤2000kg |
| Titanium Hot-rolled plates | (4~100)mm×(800~2600)mm×(2000~12000)mm |
| Titanium Cold-rolled plates | (0.01~4.0)mm×(800~1560)mm×( ~6000) mm |
| Titanium Foil/Strips | (0.01~2.0)mm×(800~1560)mm×L |
| Titanium Tubes / Pipes | Ф(3~114)mm×( 0.2~5)mm × (~15000)mm |
| Standards | GB,GJB,ASTM,AMS,BS,DIN,DMS,JIS,ГОСт |
| Titanium Grade | GR1,GR2,GR3,GR5,GR7,GR12 BT1-00,BT1-0,BT1-2 BT6 BT5-1 3B BT6c TA0,TA2,TA3,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4 |
Chemical Composition
| Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | Bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | Bal |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | Bal |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | Bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | / | / | / | Bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12-0.25 | / | / | Bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | Bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2-0.4 | 0.6-0.9 | Bal |
Tensile Requirements
| Grade | Elongation(%) | Tensile Strength (Min) | Yield Strength (Min) |
| ksi | Mpa | ksi | Mpa |
| Gr1 | 24 | 35 | 240 | 20 | 138 |
| Gr2 | 20 | 50 | 345 | 40 | 275 |
| Gr3 | 18 | 65 | 450 | 55 | 380 |
| Gr4 | 15 | 80 | 550 | 70 | 483 |
| Gr5 | 10 | 130 | 895 | 120 | 828 |
| Gr7 | 20 | 50 | 345 | 40 | 275 |
| Gr9 | 15 | 90 | 620 | 70 | 438 |
| Gr12 | 18 | 70 | 438 | 50 | 345 |
Titanium Products
| Category | Material | Dimension(mm) | Specification |
| Titanium & Alloy ingots & bars | CP Ti,
Ti-6Al-4V, Ti-6Al-4V Eli,
Ti-3Al-2.5V,
Ti-5Al-2.5Sn, Ti-5Al-2.5Sn Eli,
Ti-0.05Pd, Ti-0.2Pd,
Ti-6Al-7Nb,
Ti-13Nb-13Zr,
Ti-0.1Ru,
Ti-3Al-8V-6Cr-4Mo-4Zr,
Ti-6Al-4V-0.1Ru,
Etc. | Standard
or
customized | GB/T 2965, ASTM B348 |
| Titanium & Alloy castings | GB/T 6614, ASTM B367 |
| Titanium & Alloy forgings | GB/T 25137, ASTM B381 |
| Titanium & Alloy plates | GB/T 3621, ASTM B265 |
| Titanium & Alloy strips & foils | GB/T 3622, ASTM B265 |
| Cold rolled Titanium & Alloy strip coils | GB/T 26723, ASTM B265 |
| Titanium & Alloy wires | GB/T 3623, ASTM B863 |
| Titanium & Alloy seamless tubes | GB/T 3624, ASTM B861 |
| Titanium & Alloy welded tubes | GB/T 26057, ASTM B862 |
| PM Titanium & Alloy components | GB/T 6887, ASTM B817 |
Titanium Production Process
Titanium Production Equipment
Main Products: Titanium homeware, titanium camping/outdoor gear, titanium sports equipment, titanium artware, etc. Mill products of Ti, Zr, Ni&clad metals Mill products of Ta, Nb, W, Mo Equipment matching assembly, pressure vessel, heat-exchanger etc. Precious metals: Au, Ag, Ir, Pd, Ru, Rh, Etc. Achievements: The first to apply TC9 Titanium alloy to the advanced aircraft engines in China The first to obtain the certificate of airworthiness to use the titanium fastener for aircraft in China The first to produce the titanium-steel composite plate in China The first to develop the titanium-steel composite satellite connector The first to develop and create titanium-steel composite pot in the world |
Why Choose Us? 53 years of titanium R&D and production experience Our products have been exported to more than 30 countries all round the world State-owned company with great credit and strong financial strength Competitive price,best service, strict quality control system and on-time delivery Related Supply Chain Service
