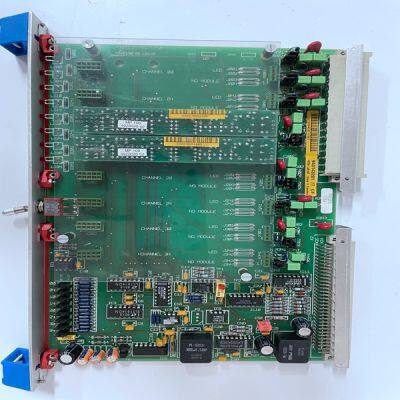

IBA 940143201

Product Details

Product Description

Product Description
Brand:ABB
Type:IBA 940143201
Origin: the Swiss
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Our main products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
If the 16 contact inputs available, four have functions already assigned to them (preset) and cannot be changed, the other 12 are user-configurable. The Preset Contact Inputs are: • External Emergency Shutdown • External Reset • Raise Speed Setpoint • Lower Speed Setpoint Before starting, the External Emergency Shutdown contact must have an external contact wired in and closed or be jumpered closed. The control will initiate an emergency shutdown any time the contact is opened. This input is typically tied into the system’s trip string and provides trip feedback to the control. The external reset contact can be used to remotely clear alarms and return the control to the (Controlling Parameter /Push Run or Prgm) state after a shutdown. The raise and lower speed setpoint contact inputs can be used to remotely raise and lower speed or load. Applications requiring external contact inputs must have the desired function assigned or configured to a specific input. There is a choice of twelve possible contact inputs and thirty-eight programmable functions. If the 505E is configured for a generator application two of the contacts must be configured for the Generator and Utility breaker inputs. The Generator Breaker contact must be wired so it is closed when the generator breaker is closed. The Utility Tie Breaker contact must be wired so it is closed when the utility tie breaker is closed. Refer to Chapter 4 of this manual for a complete list of programmable contact input functions. Analog Inputs Analog inputs # 1, 2, 3, 4, and 5 may be used with two-wire ungrounded (loop powered) transducers or isolated (self-powered) transducers. Jumpers are available to match the analog input circuit to the transducer being interfaced with, or the power supply common may be jumpered on the terminal block. Verification of jumper location is recommended before system startup or operation. See Table 2-1 for jumper options and Figure 2-4 for jumper locations. Because inputs 1–5 are not fully isolated, care must be taken in their application and maintenance to avoid “ground-loop” type problems. If interfacing to a nonisolated device with one of these inputs, the use of a loop isolator is recommended to break any return current paths, which could result in erroneous readings. Analog input # 6 is a fully isolated input and is designed to be used with a nonisolated source such as a Distributed Control System (DCS). This input does not use or have jumpers for hardware configuration options.
Refer to Figure 2-7, Option #1 for correct wiring configuration. Analog input #1 is dedicated as the extraction/admission input signal. The remaining five analog inputs (2-6) are programmable. All 505E inputs have an input impedance of 200 Ω. Refer to Chapter 4 of this manual for a complete list of programmable analog input options.
