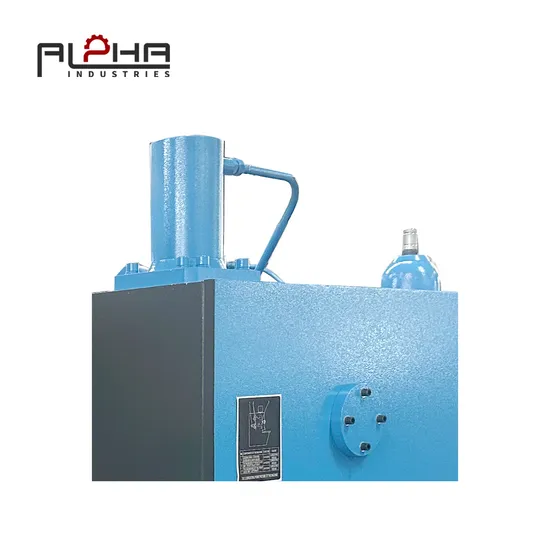

Conventional Fabricado En China Plate Shear High-Precision Machine

Product Description

Product Parameters

NO.	ITEM		SPECIFICATION		UNIT	REMARK
1	Shearing thickness		8		mm
2	Shearing width		2000		mm
3	Strength of folded sheet		450		N/mm2
4	Throat depth		150		mm
5	Shearing angle		0.5°-2°
6	Number of stroke		4-15		min-1
7	Column distance		2300		mm
8	Blade length		2100		mm
9	Worktable height		700		mm
10	Backguage range		20-600		mm
11	Main motor	model	Y200L-4
		power	7.5	KW
		revolution	1470	rpm
12	Gear pump	model	CP1-25-P-10R			SUNNY
		flow	25	L/min
		pressure	32	MPa
13	Max. working pressure of hydraulic system		25	MPa
14	Dimension	Length	2800	mm
		With	1600	mm
		High	2050	mm

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
