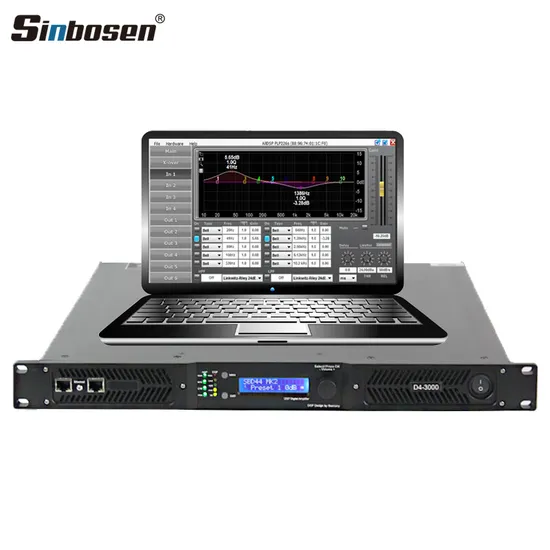

D4-3000 DSP Professional Audio 3000 Watts 4 Channel Class D DSP Stage Digital Power Amplifier Sound System Moudle

Product Description

Sinbosen 1u digital amplifier 2 ohms DSP D4-3000 professional 4 channnels 7900w power amplifier
Product Description

1U Amplifier	DSP D4-3000
Rated Output Power(THD+N=1%, 1kHz continue sine wave, all channel driving)	8Ω/Stereo	4x3000W
	4Ω/Stereo	4x5000W
	2Ω/Stereo	4x6500W
	8Ω/Bridge	2x10000W
	4Ω/Bridge	2x13000W

Power	PFC Power
Rated power demand	100-240V ±10%, 50/60 Hz
Operation voltage	90V-270V
Power correction factor cos	>0.95 @ >500 W
Standby	47W and 0.8A
Gain,Sensitivity	32dB,35dB,38dB,41dB
Maximum Output Voltage/Current	185V/85A (370V in the BRIDGE MODE)
Power Comsumption	230V (115V in the BRIDGE MODE)
Environment temperature	0°-45C / 32'-113*F
Cooling system	Tunnel through cooling system
Frequency Response	20 Hz - 20 kHz (1 W @ 8 Ω, ±0.5 dB)
Dimensions	482 x 44 x 380mm³ / 482 x 44 x 470 mm³
Net weight	10Kg / 12kg
Packing size	580 x 580 x 119mm³ / 615 x 615 x 119mm³
Shipping weight	12Kg / 14Kg

PROFESSIONAL POWER AMPLIFIER
1 Performance overview
a,High efficiency and energy saving, operation cost is low,
b,Compact and light weight,structure is firm.
c,Comply with the safety and EMC standards.
d,90~260VAC / 50~60HZ Wide range power supply.
e,First-class quality, thanks for the components from international high-end manufacturers.
f,Temperature control fan for quiet operation.
g,Modular design and maintenance is convenient.
h,Very suitable for mobile show.
i, Reasonable design makes you feel relaxed in the process of using.
2 Environmental protection, energy saving, cost saving
Advantages of high efficiency:
* Low working temperature, rlability will be improved obviously.
* The size and weight are only 1/3 of tradition amplifier.
" The cost for transportation, handling, installation will reduce obviously.
* Saving energy, reducing operating costs
* Environmental protection
3. Cooling instructions: Good heat dissipation /High quality fans
The cooling mode of the equipment is as follows: the cold air is sucked through the ventilation hole of the front panel, and the heat is taken out from the rear panel.
