Keepon Automatic Jumbo Label Stock Paper Roll Sheeter Rotary Paper Sheeting Machine Roll to Sheet Cross Cutting Machine Price

Product Description

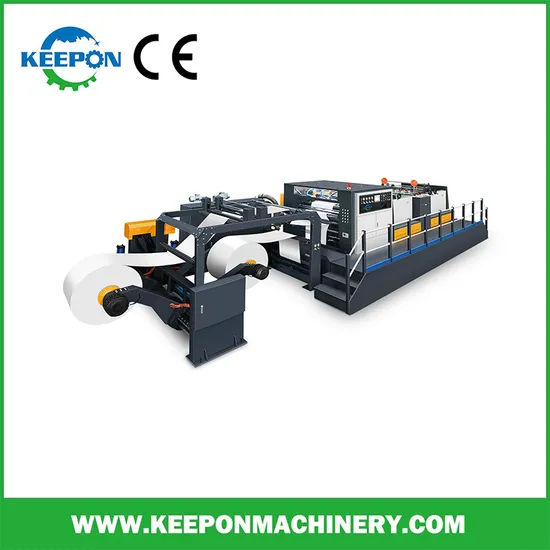

SM Series Double Rotary Knife Paper Roll to Sheet Cutting Machine
SM series servo control double rotary knife high speed paper sheeter machine is fit for paper roll sheet cutting into sized paper, it isone of most advanced and high precision type of paper sheeter machine in the world. It is most suitable for high precision paper required converting company. This model suit for thick paper sheeting.
Features:
1. Adopt nodular cast iron-QT500-7, original paper frame clamp arms casting by special technology process, thus featuring by high
strength, never deformation and ensure the safety of original paper frame clamp arms.
2. Adopt steel plate-Q335, the mainframe wallboard has precision manufacturing and high strength, thus will never-deformed.
3. The whole machine all uses SKF\NSK Original imported bearings.
4. The whole machine uses original parts imported from France Schnider, Japanese OMRON and Japanese SMC etc..
5. The conveyor belt is imported from Japan.
6. Cutting precision is depended on the density, roll number and material of paper roll, ±0.2mm for 1000mm, ±0.1% for over1000mm, and ±0.1% for acceleration or deceleration.
7. The back cutter is adopt Germany Ni-Cr-Mo metal steel, with high precision and will never- deforms, the knife edge is easy to
adjust and calibrate.
8. Use the automatic angle-aligning system to realize fast angle aligning of worksheet.
9. Equipped with anti-curve automatic regulation device, ensure fast and smooth when they adjust of anti-curved paper.
10. Paper feeding part adopts pre-pressing device, to ensure that the paper is not wrinkled.
11. Equipped with touch-screen operation interface in both Chinese and English, or other language.
12. All adopt Taiwan AIRTAC's pneumatic components to ensure every pneumatic action performs accurately.

Model	SM -1100	SM -1400	SM -1700	SM -1900
Mode of sheeting paper	Double rotary knife
Paper thickness	60-1000GSM
Max roll diameter	1500mm	1800mm
Max roll width	1100mm	1400mm	1700mm	1900mm
Cutting length	450-1450mm	450-1600mm
Form of slitting	Two sheets
Cutting precision	Cutting length≤ 1000mm: ±0.2mm, Cutting length>1000mm: ±0.1%
Max cutting speed	300cuts/min
Max cutting linear speed	300m/min
Max paper pile height	1300mm	1500mm
Air pressure	0.8MPa
Electric voltage	380/220V 50/60Hz or customerized
Machine weight	12000kgs	16000kgs	18000kgs	20000kgs

---
