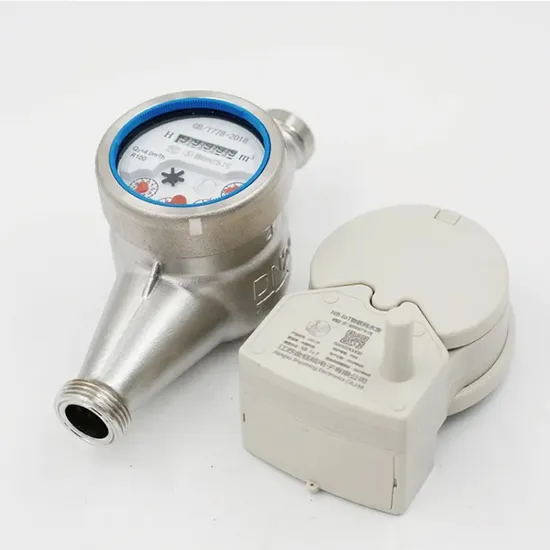

Magnetic Nb-Iot Water Meter Without Valve

Product Description

JYME1S004-LXSZ-Zn Series Wireless Direct Water Meter is a direct reading smart water meter based on NB-IoT standard communication protocol. Adopt NB-IOT wireless technology communication, the communication distance is far without the need for networking. Easy to write reading and controlling water meters, realizing remote direct reading of water meters, effectively avoiding the management department on top table reading, and improving meter reading efficiency.

The water meter is designed with an electromechanical separation structure, and the measurement is accurate. The base table and the wireless electronic unit can be completely separated, and their own independent operation is convenient to install, which is convenient for later maintenance.

Model:
JYME1S004-LXSZ-Zn MA109E

Brand:
JinYuming

JYME1S004-LXSZ-ZN Series Electrical Parameters

	Name	Parameters				Remark
		Minimum	Typical	Maximum	Unit
1	Network format	NB_IOT(China Mobile/Telecom/China Unicom)
2	Near Field Communication	NFC
3	Quiescent operating current		10	15	uA
4	Communication working current			200	mA
5	Battery		+3.6		V
6	Battery undervoltage point	3.2		3.3	V
7	Normal online voltage	3.1			V
8	NB Number of communications per day			1	time
9	Built-in battery life	6		10	year	ER26500M/ER26500+HPC
10	Frequency		850		MHZ
11	Transmit power			23	dBM
12	Sensitivity			-129	dBM
13	Operating temperature	-10		50	ºC
14	Storage Temperature	-20		60	ºC
15	Humidity		85%

Mechanical Dimensions


JYME1S004-LXSZ-ZN Series Dimension Drawing

Caliber(mm)	L1	L2	L3	H	M	D	Weight
	Uint: mm						Uint: kg
15	259	165	13	150	96	G1/2B	1.3
20	299	195	13	150	96	G3/4B	1.55
25	345	225	13	150	96	G1B	1.85
