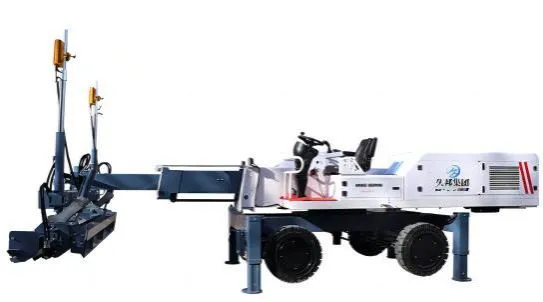

Advanced Concrete Cutting Laser Screed for Precision Flooring

Product Description

The tuowei laser system, laser system dual-slope emission and remote control, laser emission distance and stability
Large screen intelligent touch screen, powerful, easy to operate
Hydraulic outriggers, one key automatic leveling
Walking with three steering modes, adapt to the narrow space and other working conditions of moving.

Intelligent instrumentation all-weather real-time monitoring of the engine, hydraulic system, timely alarm troubleshooting
Intelligent control of the whereabouts of the leveling mechanism can achieve a soft landing to ensure the accuracy of the leveling plane
Paving stringer bearings are fully enclosed design to ensure no concrete infiltration
The machine body rotates 360° and is designed with soft start and soft stop functions to ensure the stability of the leveling head.
360-degree telescopic arm length 6m, fast rotating platform, 4m leveling head can rotate and swing, 24 concrete leveling each time.
Drive the new design of eccentric vibration beam, 4.15m super long scraper.
Special finishing telescopic arm with high strength and smooth telescopic without swaying
High-precision dynamic balance-corrected paving winch
Multi-functional control handle for all control actions, easy to learn and easy to operate
The paving winch blade is made of high wear-resistant alloy steel and covered with welded extremely wear-resistant high manganese material
Fitted with solid tires, anti-puncture, long life
Equipped with a hydraulically driven high-pressure cleaning pump, which can clean the machine at any time
Product Parameters

Model	JB60-40
Type	Boom type
Engine
Model	Yanmar 4TNV98T-ZNLYS
Type	Diesel Engine, Liquid cooled, 4 stroke, 4 cylinder
Power	57.3kW/2400rpm
Engine oil volume	10.2L
Fuel consumption	252g/kwh
Running device
Driving	4 Hydraulic drive motor
Wheel	Antiskid tyre
Steering	Front Wheel/ 4-Wheel/ Crab-shaped turn
Outrigger	4 legs, Self-leveling
Working Speed	0-8km/min
Driving Speed	22m²/min
Screed head
Type	Self-leveling
Arm Length	6000mm
Width	3850mm
Paving type	With auger
Auger force	Hydraulic motor
Exciting force	2000N
Vibration frequency	60Hz
Swing Angle	±45°
Screed head control	Ratio control
Height of screed head	560mm
Control accuracy	±1.5mm
Laser control system
Control type	Microcomputer laser scan
Control effect	Flat, slope or double slope
Operation mode
Chair position	Ride-on forward type
Forward and reverse	Handle control, stepless speed walking
Telescopic arm	Handle control, stepless speed
Steering	Hydraulic intelligent control
Cleaning system
Power	Hydraulic motor
Theoretical flow	20L/min
The Max pressure of inlet	0.5Mpa
Rated pressure	7MPa
Fuel tank volume	150L
Hydraulic oil volume	150L
Size and Weight
Outline dimension	5200×4350×3700mm
Weight	8500kg

Company Profile
Jiubang Heavy Industry Co., Ltd. was established in 2010 and has become a leading domestic manufacturer of special vehicles and heavy machinery. The company's journey from obscurity to a national high-tech enterprise with strong R&D, production and sales infrastructure has been nothing short of remarkable.
In 2019, Jiubang made a major leap and moved to an advanced factory covering an area of more than 75,000 square meters. It has 7 CNC laser cutting machines and 4 bending machines, with a maximum production capacity of 9,000 tons, and can produce more than 6,000 special vehicles annually. With a dedicated team of 370 employees, this modern factory is the center of Jiubang's innovative product development and manufacturing processes. In addition, the company also has an extensive network of more than 350 after-sales service outlets to ensure timely and efficient services to customers.
The company's products have also gained global recognition and obtained ISO9001:2015 quality management system, SGS, CE, EAC and other certifications. These certifications demonstrate Jiubang's commitment to quality and compliance with international standards.
Friends from all over the world are welcome to visit the factory and discuss cooperation.

FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Can you meet my special requirements?
A: Yes, we accept customization.
3: What about the delivery time?
A: Generally, it will take 3 days after payment arrived.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

---
