Concrete Floor Grinding Machine 750-3D

Product Description

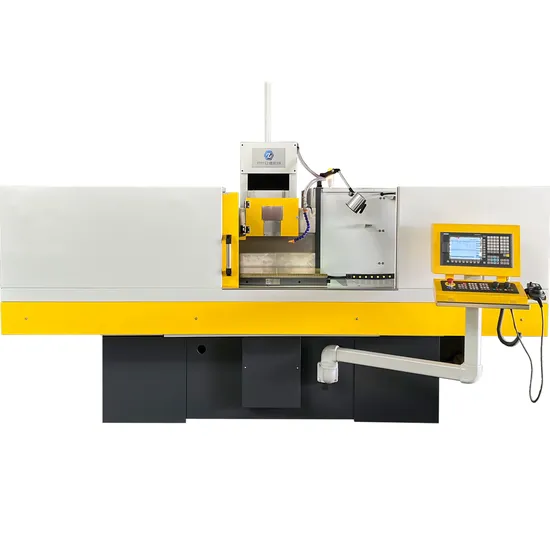

FSG-50 NC Series Surface Grinding Machine
· External hydraulic unit ensures low temperature rising and supply stability power
· Auto-Center lubrication unit
· Very easy to set auto ground program include rough, finish, and sparkout stroke
· Precision grinding spindle runs in maintenane-free, suport by preload high precision angular ball bearing
· Machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy
· The machine bed, table and column are high grade casting piece, which supply strong base of grinding. The slideway is coat with tf wearable material and manual precision scrapped.
Technical Parameters

Model No.	Unit	FSG-50100NC	FSG-50160NC
table size (W×L)	mm	500×1000(19.69"×39.37")	500×1600(19.69"×62.99")
max. grinding size (W×L)	mm	500×1000(19.69"×39.37")	500×1600(19.69"×62.99")
max. distance from table to spindle center	mm	600(23.62")
magnetic chuck size (optional equipment)	mm	500×1000×1(19.69"×39.37"×1)	500×1600×2(19.69"×62.99"×2)
speed of table longitudinal move	m/min	5~25(0.20"~0.98")
WHEEL HEAD CROSS MOVE
auto intermittent feed	mm/t	1~20(0.039"~0.79")
rapid speed	mm/min	50~1500(1.97"~59.06")
feed of MPG	mm/div	0.005(0.000197")
WHEEL HEAD VERTICAL MOVE
auto feed	mm/t	0.005, 0.01, 0.02, 0.03, 0.04(0.000197", 0.00039", 0.00079", 0.0012", 0.0016")
rapid speed	mm/min	50~500(1.97"~19.69")
feed of MPG	mm/div	0.005(0.000197")
gindwheel size	mm	355×(20~50)×127(13.98"×(0.79"~1.97")×5.00")
motor of spindle	kW	7.5
package size	cm	399×225×228	564×225×228
G.W.	kg	5500	6000

The grinding machine is a versatile and efficient tool used for various applications in the manufacturing industry. It is designed to remove excess material or shape workpieces with precision and accuracy. The machine utilizes an abrasive wheel or belt to achieve the desired result. One of the key advantages of the grinding machine is its ability to produce a smooth and polished finish on different materials, including metals, plastics, and ceramics. This makes it ideal for tasks such as surface finishing, deburring, and sharpening tools. The machine's operation involves rotating the abrasive wheel or belt at high speeds, which creates friction against the workpiece. As a result, the excess material is gradually removed, and the desired shape or finish is achieved. The grinding machine can be operated manually or automatically, depending on the complexity of the task. In addition to its versatility, the grinding machine offers excellent precision and accuracy. It is capable of achieving tight tolerances and fine surface finishes, making it an essential tool for industries such as aerospace, automotive, and medical. Furthermore, the grinding machine is designed for durability and reliability. It is built with high-quality components and features a robust construction to withstand the demands of heavy-duty applications. Overall, the grinding machine is an indispensable tool in the manufacturing industry. Its ability to remove excess material, shape workpieces, and produce smooth finishes makes it a valuable asset for any production facility.

---
