2024 precision engine lathe factory CD6250Cx1500 engine lathe machine

Product Description

Product Description
2024 precision engine lathe factory CD6250Cx1500 engine lathe machine main features:
1. Super voice frequency heated bedways cheap cnc lathe machine.
2. Hardened and grounded gears in the headstock.
3. With 2 precision D degree taper roller bearings on the spindle.
4. Integrated deluxe cast iron floor stand.
5. Tolerance test certificate, test flow chart included.

Specification	CD6240B/C	CD6250B/C	CD6260B/C
Max. swing over bed	φ400mm	φ500mm	φ600mm
Max. swing over cross slide	φ225mm	φ325mm	φ360mm
Max. swing over gap	φ530mm	φ630mm	φ730mm
Effective length of gap	260mm
Distance between centers	1000mm/1500mm/2000/3000mm
Bed width	330mm
Spindle bore	B:φ65mm C:φ80mm(optional:103mm)
Spindle nose	B:ISO-D6, C:ISO-D8
Spindle speed(Number)	B:20-1800rpm(15steps)
	C:24-1600rpm(15steps)
Longitudinal feeds range	66kinds 0.072-4.038mm/rev(0.0027-0.15inch/rev)
Cross feeds range	66kinds 0.036-2.019mm/rev(0.0013-0.075inch/rev)
Metric threads range	66kinds 0.5-28
Inch threads range	66kinds 1-56inch
Module threads range	33kinds 0.5-3.5mπ
Diametric threads range	33kinds 8-56D.P.
Max. travel of top slide	130mm
Max. travel of cross slide	300mm
Max. section of tool	25×25mm
Dia. of tailstock sleeve	φ65mm
Taper of tailstock sleeve	MT5
Max. travel of tailstock	120mm
Main motor power	5.5kw(CD6240/6250),7.5kw(CD6260)
Rapid traverse motor	120w
Coolant pump motor	125w
Packing size	2420/2920/3460/4720×1150mm×1800mm
N.w/G.w	1000mm: 1560/2210kg 1600/2250kgs 1640/2290kg
	1500mm: 1770/2410kg 1830/2470kgs 1870/2530kg
	2000mm: 2010/2780kg 2070/2820kgs 2130/2860kg
	3000mm: 2400/3200kg 2460/3260kgs 2580/3400kg

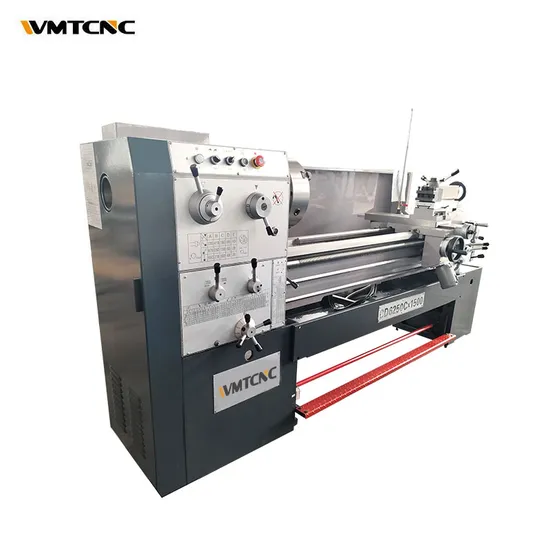

Detailed Images

Company Profile

FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
