Deye Hybrid Solar Panel Inverter 5KW 8KW 220VAC

Product Description

Product Description

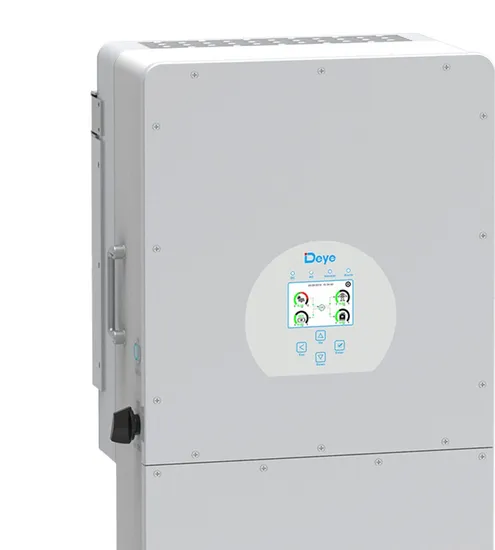

Introducing the Deye SUN-5K/8K-SG01LP1-EU, a state-of-the-art single-phase hybrid inverter engineered to enhance energy storage and utilization for residential and commercial applications. This inverter embodies advanced technology and robust design, ensuring unparalleled energy efficiency and reliability.Product Parameters

Model	SUN-5K-SG01LP1-US/EU	SUN-8K-SG01LP1 -US/EU
Battery Input Data
Battery Type	Lead-acid or Li-Ion
Battery Voltage Range (V)	40-60V
Max. Charging Current (A)	120A	190A
Max. Discharging Current (A)	120A	190A
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Yes
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	6500W	10400W
PV Input Voltage (V)	370V (100V~500V)
MPPT Range (V)	125V-425V
Start-up Voltage (V)	150 V
PV Input Current (A)	11A+11A	22A+22A
No.of MPPT Trackers	2
No.of Strings Per MPPT Tracker	1+1	2+2
AC Output Data
Rated AC Output and UPS Power (W)	5000W	8000W
Max. AC Output Power (W)	5500W	8800W
Peak Power (off grid)	2 times of rated power, 10 S
AC Output Rated Current (A)	20.8A	33.4A / 35A
Max. AC Current (A)	22.9A	36.7A / 38.5A
Max. Continuous AC Passthrough (A)	35A	50A
Output Frequency and Voltage	50 / 60Hz; 120 / 240Vac (split phase), 208Vac (2 / 3 phase),
	230Vac (single phase)
Grid Type	Split phase; 2 / 3 phase; Single Phase
Current Harmonic Distortion	THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Protection
PV Input Lightning Protection	Integrated
Anti-islanding Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current Protection	Integrated
Output Shorted Protection	Integrated
Output Over Voltage Protection	Integrated
Surge protection	DC Type II/ACType II
Certifications and Standards
Grid Regulation	IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
Safety EMC / Standard	IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11,1EC61000-3-12
General Data
Operating Temperature Range (°C)	-25~60°C, >45°C Derating
Cooling	Smart cooling
Noise (dB)	<30 dB
Communication with BMS	RS485; CAN
Weight (kg)	32
Size (mm)	420W×670H×233D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years
Place of Origin	Zhejiang, China
Brand Name	Deye
Model Number	SUN-5K/8K-SG01LP1-EU
Input Voltage	370V (100V~500V)
Output Voltage	110V/220V/230V/240V
Output Current	21.7A-38.5A
Output Frequency	50Hz/60Hz
Size	420W*670H*233D
Certificate	IEC/UTE/EN/VDE
Warranty	5 YEARS
Weight	32KG
Product name	Deye Hybrid Inverter
Certificate	IEC/CE/VDE/ UTE /EN
Inverter type	Hybrid Solar Power Inverter
MPPT Efficiency	99. 9%
Battery type	Lithium
Application	Solar Power System
Battery Voltage	40~60V
Communication	Can / RS485
MPPT Range @ Operating Voltage	125V-425V

Detailed Photos
Packaging & Shipping
Company ProfileBeian (Suzhou) New Energy Co., Ltd. is one high-tech green energy enterprise in Suzhou, China.
We focus on customized solution and products of lithium ion battery.
Our products are widely used on solar energy storage system, electric vehicle, electric forklift, marine, golf carts, AGV etc.
Our batteries are lithium ion phosphate and NMC types, we provide standard battery cell, standard battery module, standard battery pack, tailor made battery module and tailor made battery pack.

FAQQ1:Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. For urgent case, please call us or tell us in your email so that we'll regard your inquiry priority.
Q2.Do you have MOQ for Your Batteries?
A: We want to support our customer without MOQ request.
Q3. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q4. What about the lead time?
A. Sample needs 7 days, mass production time needs 3-5 weeks, it depends on order quantity.
Q5.Is it OK to print my logo on the product?
A: Yes. We welcome OEM orders.
Q6:How long does the warranty?
A: In general, the time is 1 year.
Q7: What is your terms of payment?
A: We accept T/T and L/C
Q8.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q9.How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT for samples. For mass order, you can choose Sea or Air shipment.
Q10:Can we visit your factory?
A: Warmly welcome. Our factory located in shenzhen, near Guangzhou.

---
