PVC WPC Profile Board Extruder Wood Plastic Composite Windows Door Frame Decking Wall Panel Floors Fence Sealing Strip PC Hollow Sheet Extrusion Making Machine

Product Description

Product Description
Product Name: Faygo union Wood Plastic Profile Co Extrusion PVC WPC Windows & Door Frame Decking Sheet Wall Panel Floor Fence / PE Soft Waterproof Sealing Strip Extruder Making Machine
Company: Jiangsu Faygo Union Machinery Co., Ltd.
Description: The Plastic Profile Making Machine from Jiangsu Faygo Union Machinery Co., Ltd. is a high-quality, efficient machine designed for producing a variety of PVC WPC profiles. This machine is perfect for manufacturing windows, door frames, decking sheets, wall panels, floors, fences, and PE soft waterproof sealing strips. With advanced co-extrusion technology, this machine ensures precise and uniform output, making it ideal for various applications in the construction industry. Invest in this machine to streamline your production process and create durable, high-quality products.
Plastic Profile Extrusion Machine Features The Plastic Profile Extrusion Machine from Jiangsu Faygo Union Machinery Co., Ltd. can produce a wide range of plastic profile products, including:
Building materials like PVC window frames, door frames, wall corners, floors, ceilings, partition boards, etc. Packaging materials such as PE/PP pipes, sheets, films, nets, containers, buckets, boxes, etc. Consumer goods like ABS/PS/LDPE car interiors, household appliance shells, toys, stationery, shoe materials, mats, etc. PVC/PE drainage pipes, cables conduits, and other pipeline materials. PVC/PE irrigation pipes, sewage pipes, and other agricultural and environmental protection materials. Since the plastic profile extrusion machine has adjustable molds and extruders, it can customize various shapes of plastic profile products according to customer requirements, which is relatively flexible.

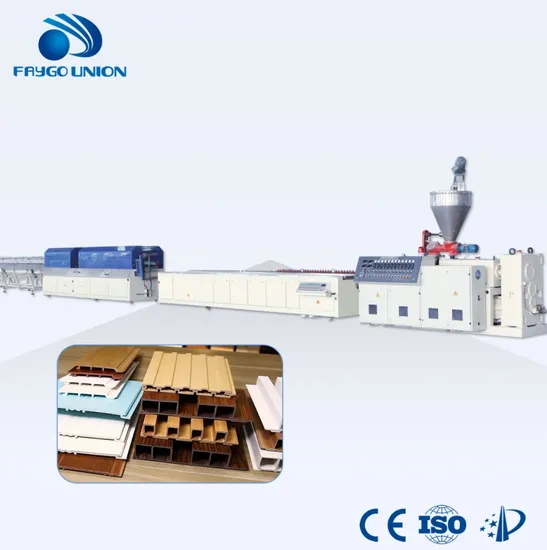

This line consists of a screw feeder, a conical twin-screw extruder, a T-die, a vacuum setting table, a haul-off machine, a cutting machine, and a stacker. With adjustable molds and extruders, this machine can customize various shapes of plastic profile products according to customer requirements, offering flexibility in production.
Product Parameters
Plastic Profile production line Technical data:

Model	YF180	YF240	YF300	YF600
Max product width(mm)	180	240	300	600
Exreuder model	SJZ55/110	SJZ65/132	SJZ65/132	SJZ80/156
Extruder power(kw)	22	30/37	37	55
Cooling water(m3/h)	5	7	7	10
Gas consumption(m3/min)	0.2	0.3	0.3	0.4

Equipment list of Profile Extrusion Making Machine

Compulsory devices
1		Material charge		1 set
2		Single/Conical twin screw extruder/		1 set
3		Extrusion die head		16-400m
4		calibrating and cooling table		1 set or several sets
5		caterpillars hauling off machine		1 set
6		Saw cutting machine		1 set
7		stacker-6000mm length or colier		1 set
8		Electrical cabinet(Omron, RKC etc)		1 set
9		Spare parts		1 set
Optional Devices
1		High speed hot and cold mixer		1 set
2		Crusher		1 set
3		Industrial water chiller		1 set
4		Air compressor		1 set
5		Thermocontroller for die head		1 set
Payment, delivery and after sales services
1	Payment terms		30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable
2	Delivery time		60 days after receipt of prepayment
3	Packing method		Wooden cases/pallets with stretching films
4	Guaranteed time		18 months for mechanical parts, 12 months for electrical parts
5	After sale service		Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable
6	Contact information

Product Details
Conical Twin Screw Extruder:
High torque gearbox with adopts NSK/SKF bearing;
Siemens/WEG original motor achieved global after service;
Bimetallic screw and barrel;
Intelligent PLC controlling system with human-friendly interface.

Die head:
3Cr13/3Cr17 material;
Complete set include extrusion die head, calibrator and cooling tank;
Apply to soft PVC, rigid PVC, soft-hard co-extrusion profile, foamed profile, multi-layers co-extrusion etc.
Calibration table
Include full set of vacuum and water pump;
Length from 4m-11.5m
Independent operation panel for easy operation.
Haul off machine:
Adopts caterpillar type suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.
Cutting machine:
Precision machine cutter is able to make flat, straight cuts at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

Detailed Photos

Please contact us for more information, we will customize the full solution for you!
Company Profile
Jiangsu Faygo Union Machinery is a professional manufacturer of plastic machines. It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.
Stick to the company idea is making good machine, being good person, Faygo Plast alwasy provide customers with high quality machines. Warmly welcome to visit our factory (next to Shanghai)!

FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: What is the ability of your factory?
A: About 100 lines per month.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.

---
