| US$220.00-320.00 | 1 Piece (MOQ) |

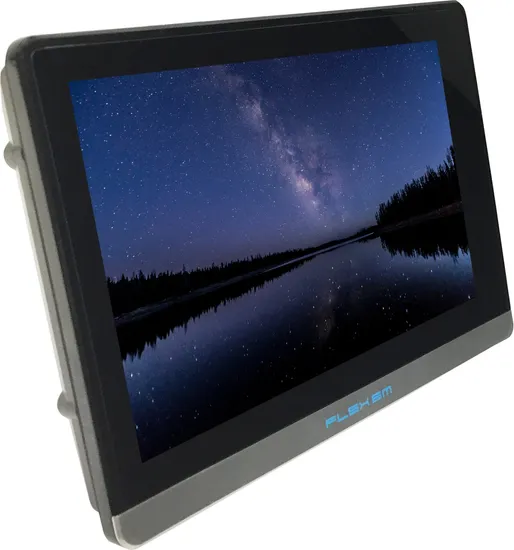

| Hardware parameter | Display | 7 inch 16:9 TFT LCD , wide view |
| Resolution (WxH) | 1024*600 | |
| Colors | 24-bit | |
| Brightness | 450 cd/m² | |
| Backlight | LED | |
| LCD Life | 50000 hours | |
| Touch Panel | Glass+ Glass projective multi-touch capacitive HMI | |
| CPU | 600MHz ARM Cortex-A8 | |
| Memory | 128M Flash + 128M DDR3 | |
| RTC | Built in | |
| Ethernet | 10M/100M Adaptive | |
| SD Card Port | Available | |
| USB Port | USB Slave 2.0 Port*1,USB Host 2.0 Port*1 | |
| Download Project | USB Device/U-disk/Ethernet | |
| COM Port | COM1:RS232/RS485/RS422, COM2/COM4:RS485, COM3:RS232 | |
| LCD viewing angle (T/B/L/R) | 70'/75'/75'/75' | |
| Electrical Specifications | Power Consumption | < 6W |
| Input Power | DC24V,working range DC 9V~28V | |
| Power Protection | Protected from thunder strike and surging | |
| Power Down Allowed | < 5mS | |
| CE & RoHS | Complied with EN61000-6-2:2005, EN61000-6-4:2007, RoHS, Surge Immunity:±1KV, EFT:±2KV,ESD:4KV, Air:8KV | |
| Environment Specifications | Operating Temperature | -10~60C |
| Storage Temperature | -20~70C | |
| Anti-UV | Not suitable to work in strong ultraviolet light (such as direct sunlight) | |
| Operating Humidity | 10~90%RH(Non condensation) | |
| Vibration Endurance | 10~25Hz(X,Y,Z direction 2G/30 minutes) | |
| Cooling | Natural air cooling | |
| Mechanical Index | Degree of protection | Front IP65(with NEMA panel),Back IP20 |
| Enclosure | ABS+PC | |
| Panel Cutout (WxH) | 178mm*125mm | |
| Dimension | 185.1mm*131.1mm*30mm | |
| Weight | About 680g |
