12L Plastic Detergent Bottles Containers Double Station Blowing Molding Machine

Product Description

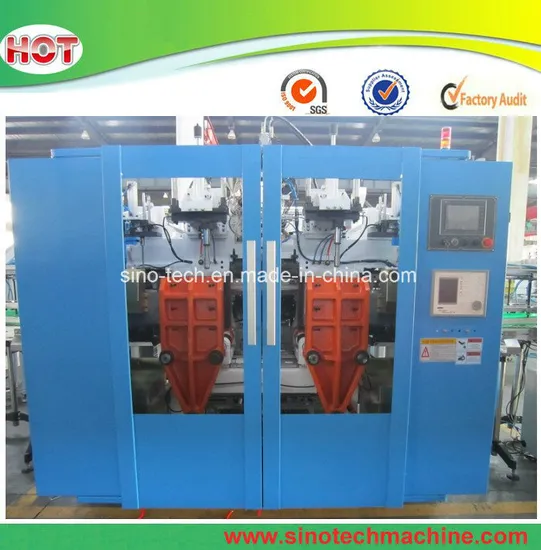

12L Plastic Detergent Bottles Containers Double Station Blow Molding Machine
Features
1. Electric system: Mitsubishi PLC from Japan and human-machine interface
2. Hydraulic system: YUKEN hydraulic valves and pump from Japan
3. Plastisizing system: Effective, energy-saved screw
4. Die head specially designed for PC material
5. Clamping unit: Adopting linear slide way with precision up to um grade
6. Parison injecting: Single hydraulic cylinder without non-synchronization
7. Mould changing: Extruding cover can be adjusted up and down, diehead can be moved by hydraulic, and mould changing is very easy.
Technical Parameter

Model No.	HT-12L	HTII-12L
Max.Product Volume(L)	12	12
Station	Single	Double
Dry cycle (PC/H)	700	700*2
Screw Diameter (mm)	70(80)	90
Screw L/D Ratio (L/D)	25	25
Screw Drive Power (KW)	22(30)	37
Screw Heating Power(KW)	12.7~17.6	15.6
No.Of heating zone(Srew)	3	3
Output of HDPE(kg/h)	90(110)	130
Hydraulic pump driving power (KW)	11	11
Clamping force(KN)	110	110
Platen distance (mm)	240~620	240~620
Mold moving stroke(mm)	520	550
Max.Size of Mold(W*H)(mm)	510*500	540*500
Central distance of Bi-head(mm)	240,260	240,260
Max.Die Diameter (Bi-head)(mm)	145	145
No.Of heating zone (Bi-head)(ZONE)	7	7
Max.Die Diameter(single-head)(mm)	220	220
Die heating power(single-head)(KW)	9.1	9.1
No.Of heating zone (Single-head)(ZONE)	3	3
Blowing pressure(Mpa)	0.6	0.6
Heating power(Bi-head)(KW)	15	15
Air consumption(m³/MIN)	0.8	0.8
Cooling water pressure(Mpa)	0.3	0.3
Water consumption(L/Min)	60	60
Size of machine(L*W*H)(m)	3.3*2.3*3.1	4.1*2.9*3.1
Weight of machine(TON)	6	10

Detail show
Production workshop
Packing & Shipping

After Sales service:
1. We offer you the free machine operation training happened in China.
2. Offering the free testing and installing of the machine in the buyer factory, but the fee of the visa, the ticket, food and living should be in the buyer's charge.
3. The spare parts of the machine and the auxiliary machine can be supply by us.
4. The guarantee of the machine is one year under the normal operation.
5. We offer the customer the technology for free for all life time.
Any question,please call me.
MOB&waspp: +8613773240086

---
