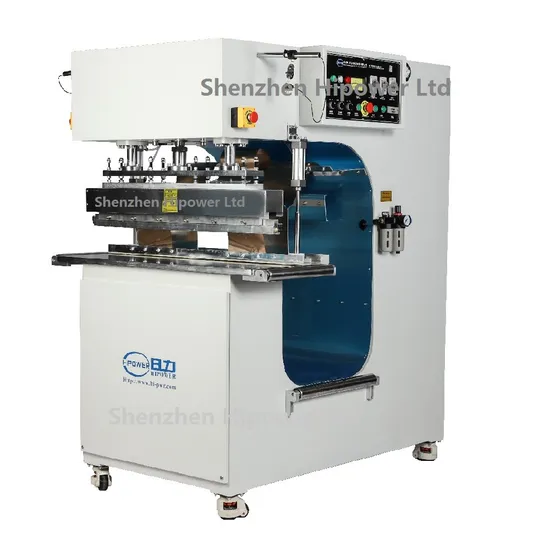

High Frequency PVC Tarpaulin Welding Machine (HR-15KW)

Product Description

Product Description Application:
It is especially designed for HF welding of large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural,canopy, swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising / printing/ Film cloth, the membrane structure, etc.
Machine General Features:
1. Length, width and radian of welding area can be adjusted by change welding die.
2. European-model square high frequency vibration box, more reliable and stable in output
3. Single line or two lines continue welding, welding length can be ordered as special need.
4. Can be used as a freestanding machine for welding production or as a supplement to a larger system.
5. CE rated machine; factory verified by SGS and BV;
6. Customer's site installation, training & maintenance available
Product Parameters

Model	HR-5KW-F1	HR-8KW-F1	HR-12KW-F1		HR-15KW-F1
Output Power of Generator	5KW	8KW	10KW		15KW
Anti-Spark System
Voltage	3P AC 380V 50Hz-60HZ or customize
Frequency	27.12MHz +/- 0,6 %
Input power	8KVA	15KVA	20KVA		25KVA
Rectifier	SILICON DIODE
Oscillation tube	7T85RB	7T69RB	E3130		8T85RB
Max pressure	350KGS	500kg	800kg		1000kg
Operation mode	Pneumatic Operated
Max gap of electrodes	100mm
Size of active horn	100mm
Upper Electrode (W*H*L)	50*50*600mm	50*50*800mm		50**50*800mm	50*50*900mm
Size of Work Table (L*W)	350*700mm	450*1050mm		450*1050mm	400*1150mm
Welding time	0.01~9.99s adjustable
Net weight	800KGS	1000kgs	1000kgs		1000kgs
Space behind electrode	400mm	750mm	750mm		750mm

Company Profile Who We Are:
Since 2000, Shenzhen Hipower Ltd, concentrates on highest quality, on-time delivery, professional technology support,customer-oriented service and competitive price.Where Are our Customers:
Our products are mainly exported to Asia, North America, South America, Europe and Africa, and etc....What we do:Our equipments are widely used in industrial application like: Automotive Parts, Stationery, conveyor belts Tarpaulin, BigCovers,Tents products, Tensile structure, Medical Bags, Blister Packaging, Cylindrical Box, and other plastic welding industries.
Packaging & Shipping Hipower is at the forefront of newest technical developments in the field of high frequency and ultrasonic weldingtechnology, automation of production processes, and other innovative industrial solutions.

FAQ Question 01: Are a trading company or Manufactuer? RE: Since 2000, we are the manufacturer in this filed; Our factory can design, develop and manufacture ODM and OEM equipments for clients all over the worlds.
Questions 02: What about Delivery Time: RE: 3 days for standard machine; and 15 to 35 days for custom machines
Questions 03: Payment Term: RE: We accept payment by T/T, L/C, West Union, Paypal.
Questions 04: How do I inspect your machine quality? RE: We always have real machines ready in stock, We shall meet you at airport, hotel, or railway station.
Questions 05: Is the machine easy to use and maintain in future? RE: Yes, it is; we shall provide instructional manual, videos and engineer support via email or video talk online.
Questions 06. How Do You Pack the machines
RE: Our machines will be packed into after treatment wood box
Questions 07. Does the machine power voltage meet buyers' factory power source?
RE:Frequency: 50 - 60HZ Phases: single phase / 3 phases ; Voltage: 110V / 220V / 380V/ 415V/ 440V / On request
Questions 9. Could you make die / mould for me, if I buy machine from you?
RE: We design and make moulds up to product sample or drawings, we charge the mould price at facory cost price.

---
