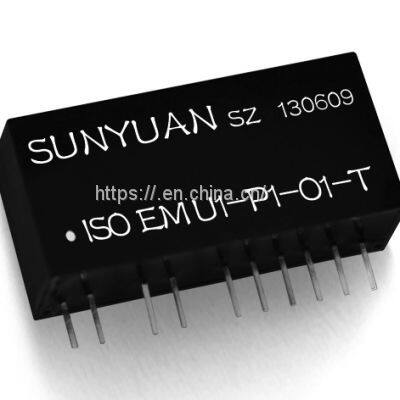

Magnetoelectric Coupling 0-10V Analog DC Signal Isolators
Features:
1. Low cost, small size, SIP 12Pin, anti- fire UL94V-0 package
2. External components, "ZERO" "G.adj" adjustment are not required
3. Three-port (power/input/output) isolation: 3000VDC
4. Auxiliary power supply: 5VDC/12VDC/15VDC/24VDC
5. 0-75mV/0-2.5V/0-5V/0-10V/0-±100mV/0-±5V/0-±10V voltage signal 0-10mA/0-20mA/4-20mA/0-±10mA/0-±20mA current signal isolation and amplification.
6. Temperature range: -45~+85 ºC
7. In EMC (electromagnetism interference) circumstance, need to take shielding measures.
Applications:
1. DC current/voltage signal isolated/transfer/amplifier
2. No distortion in long distance signal transmission
3. Analog signal data acquisition
4. 4-20mA(0-20mA)/0-5V signal isolation and transfer
5. Equipment and sensor signal acquisition
6. Signal isolated transmission and conversion
7. Electric power, distant control, isolated safe bar
8. 4-20mA sensor analog signal transmission
9. Ground interference control
Specification:
Item4Magnetoelectric Coupling 0-10V Analog DC Signal Isolators
Model No.ISOEM U-P-O
Input0-5V, 0-10V, 0-75mV, 0-2.5V, 0-±5V, 0-±10V, 0-±100mV, 0-1mA, 0-10mA, 0-20mA, 4-20mA, 0-±1mA, 0-±10mA, 0-±20mA
Output4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V, 0-±5V, -20-20mA, 0-±10V
Power supply24V/12V/15V/5VDC
Isolation voltage3KVDC isolation between input and output
PackageSip 12
Optional package typeDIN rail mounted type

Model Selection:
