Large Capacity 60 Tph Hammer Crusher Machine Mining Machine Stone Crusher

Product Description

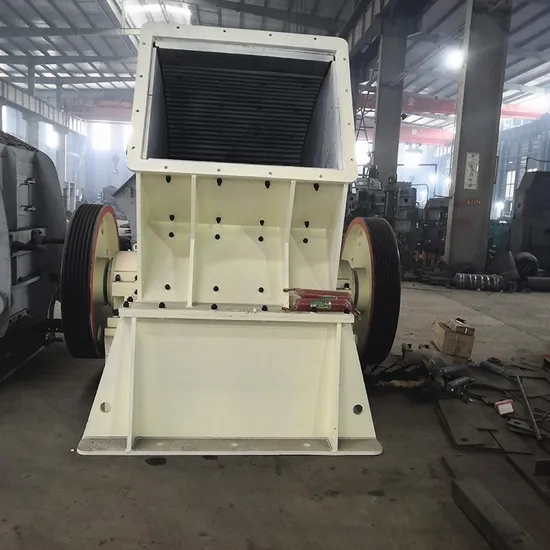

Large capacity 60 tph hammer crusher machine mining machine stone crusher
Product Description

Description
Hammer crusher, also called hammer mill, which is the machine used to crush materials into smaller pieces. The basic design of this type machinesinvolves a rotating shaft which free-swinging hammers are attached. Thisassembly is enclosed by a drum which carries the material to be pulverized. Ahopper is used to feed the source material into the drum. The hammers graduallycrush material until it is small enough to pass through a screen with openings inaccordance with the desired particle size.
Working principle

Working principle of single stage hammer crusher
Hammer crusher mainly consists of frame, rotor, support iron and grate bars. The frame is divided into two parts: Upper part and lower part which are welded by steel plates after being cut. Liners made of high manganese steels within the frame can be replaced after being worn out. The rotors consist of the turn plate, pin shafts, and hammers which are grouped regularly in the main shaft. The motor drives the rotors to rotate quickly in the crushing cavity, and hammers spread outward as a result of centrifugal force from the rotation of the rotors. Large materials entering the crusher through the feed inlet are stricken, impacted, cut and ground by the high-speed hammers to small size. Qualified materials crushed will be screened out and exit from the gap of the grate bars while the unqualified will be left in the crushing cavity to be further hammered and ground until reach the standard size. The size of the final product can be adjusted by changing the grate bars. The gap between the rotors and the grate bars can also be adjusted according to different requirement.
Main Features

Features
1.Integration of feeder, belt conveyor, vibrating screen and crusher
2.Steerable traction axis makes road transit and place expanding convenient
3.Vehicular installation makes the plant in the working place easy
4.Integration of vehicular generating set, motors and control box
Product Parameters

Specification and technical parameters

>Specifications	>Feeding Size (mm)	>Discharging size (mm)	>Capacity (m³/h)	>Motor power (kw)	>Total weight (t)	>Dimensions(L×W×H) (mm)
>PCΦ400×300	>≤200	>≤25	>5-10	>11	>0.8	>900×670×860
>PCΦ600×400	>≤250	>≤30	>10-22	>22	>2.26	>1200×1050×1200
>PCΦ800×600	>≤250	>≤35	>18-40	>55	>4.8	>1310×1180×1310
>PCΦ1000×800	>≤350	>≤35	>25-50	>75	>5.9	>1600×1390×1575
>PCΦ1000×1000	>≤350	>≤35	>30-55	>90	>8	>1800×1590×1775
>PCΦ1250×1250	>≤350	>≤35	>35-65	>132	>14	>2060×1600×1890
>PCΦ1400×1400	>≤350	>≤35	>50-100	>280	>32	>2365×1870×2220
>PCΦ1600×1600	>≤350	>≤35	>100-150	>480	>37.5	>3050×2850×2800

FAQ
1. What is the raw material do you want to grind?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the output size of your product?
1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of rotary kiln equipment and related machinery
(Rotary kiln, granulator, crusher, grinder, dryer, cooler, feeder, conveyor belt), etc.
2.What should I do if I encounter some trouble while using it?
A: We will provide English manuals and videos to show you how to solve the problem, and if necessary, we will dispatch our engineers to your factory.
3. Do you provide installation services after ordering the machine?
A: For single machines, we provide guidance and operation videos for users.
For the production line, we provide professional construction drawings and arrange engineers to guide users in installing machines. Assist users in training skilled workers.
4.Can we visit your factory and see your equipment?
A: We really warmly welcome every customer to visit our factory, and we can take them to visit the machinery factory
1. We have comprehensive technical and business consulting services;
2. Propose the most suitable solution and equipment for our customers;
3. Free CAD design: If you can provide materials, target capabilities, and factory information, we can provide you with free CAD design.
After sales service:
1. Safe and fast payment methods;
2. Assist clients in equipment foundation construction;
3. Dispatch engineers to install and debug the equipment;
4. Provide training for frontline operators on site;
5. Regularly visit customers, solve production problems, and provide lifelong service
Our engineers will suggest you the most suitable one for you according to your information.
We will give you factory price with full specification, so pls leave us an inquiry to know more details about price, packaging shipping and discount.
Now, please click the following contact to send us email for best offer and more details !
↓↓↓
