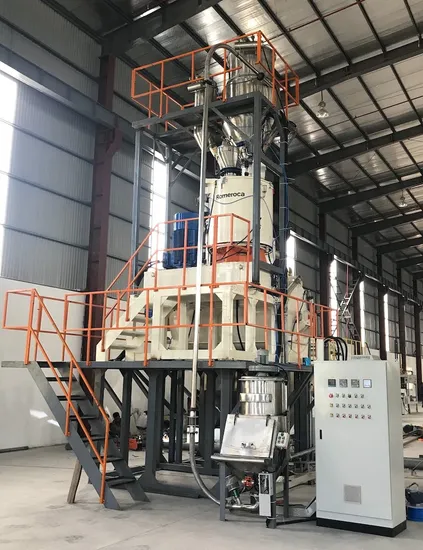

High Speed Mixing Machine Used for Spc Flooring Raw Material Mixing

Product Description

Mixer machine is first step of SPC flooring production process. Mixer is used to mix raw materials. SPC flooring raw materials are PVC-SG5, CaCo3, and some other materials such as stabilizer, PE wax, etc, to mix according to a certain ratio. Our mix machine has advantages of convenient feeding, dust free, high production efficiency, low failure rate.
Romeroca Mixer Machine have different types according to the volume of hot mixing and cooling mixing.

Machine Type	500/1000	800/2500	1000/3000	1500/6000
Hot Mixing	500L	800L	1000L	1500L
Cool Mixing	1000L	2500L	3000L	6000L

Specification of High Speed Mixing Machine RFS-MM1000/3000.

1	Mixer Vacuum Feeder	SUS304 , 2MM, 200L, transition silo 800L
		Feeding Fan 7.5KW
		MC-90 dust collector
		24 φ150×600 filter elements
2	Hot Mixing
	Total Volume	1000L
	Effective Volume	800L
	Motor Power	160KW, Siemens Standard
	Mixing Time	6~8 Min/Barrel
	Materials	SUS304,8MM for Barrel /10MM for board
	Leaf for Mixing	SUS304, 20MM
	Material for mixing	350~400KG/time
	Capacity	>2000KG/H
3	Cooling Mixing
	Total Volume	3000L
	Effective Volume	2000L
	Motor Power	22KW
	Mixing Time	6~10 Min/Barrel
	Material for mixing	350~400KG/time
	Leaf for Mixing	SUS304
	Material for mixing	350~400KG/time
	Capacity	>2000KG/H
4	Transition Silo
	Materials	SUS304, 2MM
	Motor	1.1KW
5	Screw Feeder
	Materials	φ114mm, SUS, 2MM
	Leaf	SUS
	Motors	4KW
	Capacity	2000kg/H

1) 12-months warranty on all machine products (non-consumable parts).

2) 36-months tracking service, prompt response within 24 hours.

3) Provide factory production process and machine layout design.

4) Provide technical guidance, training and support.

5) Provide timely supply support for spare parts.

6) Other support from raw materials, machines to finished products.

---
