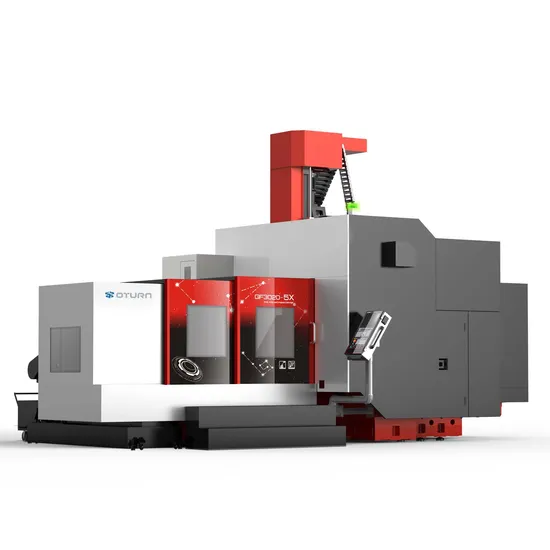

Precision Siemens Fanuc CNC 5 Axis Milling Machine GF3020 Gantry Type CNC Machining Center

Product Description

Product Description
The high-speed and high-performance five-axis gantry machining center GF3020 has the characteristics of high rigidity, high precision and high efficiency processing. The integrated gantry design increases the contact area with the column mounting base, which can greatly enhance the bending and torsional strength of the gantry; the workbench adopts a reasonable slider span and is surface quenched to make the workbench evenly stressed and improve the hardness. ; The base is designed with golden ratio reinforced ribs to ensure uniform stress on the guide rail support surface and ensure the overall accuracy of the workbench operation; the whole machine adopts the best structural design to provide the best overall stability performance.
The three-axis rapid displacement is 36/30/30m/min, the T-T tool change time is only 2.9S, the tool magazine is fully loaded, 24-hour tool change without alarm, and the 3-dimensional inspection of each machine's trial processing sample has passed, ensuring the machine tool's quality after leaving the factory. High efficiency and continuous stability. It is suitable for various two- and three-dimensional concave and convex models with complex shapes and complex cavities and surfaces. It is also suitable for milling, drilling, expanding and boring of valves, cams, molds, plates and boxes in the manufacturing industry. Tapping and other processing processes are more suitable for both small and medium-sized batches of multi-variety processing and production, and can also be entered into automatic lines for mass production.
Adopting Siemens ONE system, 19-inch ultra-large LCD display, dynamic graphic display of tool path, intelligent warning display, self-diagnosis and other functions make the use and maintenance of machine tools more convenient and faster; the high-speed bus communication method greatly improves the data processing of the CNC system Ability and control performance facilitate the fast and efficient transmission and online processing of large-capacity programs.
Product Parameters

Item		Unit	Specification
Worktable	Worktable (L×W)	mm	3000×1200
	T-slot (number of slots-width×pitch)	mm	7-22×150
	Worktable Max. load	kg	2500
Feed	X/Y/Z axis rapid displacement	m/min	30/30/30
	A/C axis Max. speed	rmp	60/60
	A axis rotary range		±110°
	C axis rotary range		360°
	Cutting feed rate	mm/min	1-12000
Travel	X/Y/Z axis travel	mm	3000×2000×800
	door width	mm	1600
	Distance from spindle end face to worktable surface	mm	150-950
	A-axis 90° center to worktable distance	mm	410-1110
	The distance from the left and right 90° end face to the end face of the main shaft (Y direction)	mm	1480
	Spindle front and rear 90° end face to end face distance (X direction)	mm	2480
Spindle	Spindle taper	mm	HSK-A100
	Spindle speed	r/min	2580-10000
	Spindle motor power (S1/S6 40%)	kW	54
	Spindle motor torque (S1/S6 40%)	N.m	200-240
Tool magazine	Tool magazine storage capacity	T	30
	Tool change time (T-T)	S	2.9
	tool diameter/length	mm	120/400
	tool weight	kg	8
Three axis	X-axis guide rail	mm	45/5 roller
	Y-axis guide rail		55/2 roller
	Z-axis guide rail		55/3 roller
	X-axis screw	mm	R63×16
	Y-axis lead screw	mm	R50×16
	Z axis screw	mm	R50×12
Accuracy	Linear axis positioning accuracy	mm	±0.005/300mm
	Linear axis repeat positioning accuracy	mm	±0.003/300mm
	Rotary axis positioning accuracy-A/C axis	arc-sec	8
	Rotary axis repeat positioning accuracy-A/C axis	arc-sec	6
Lubrication system	Lubrication unit capacity	L	10
	Lubrication type		Thin oil lubrication
Cutting fluid	Drain tank volume	L	850
	Center outlet tank volume	L	200
Other	air demand	kg/c	≥6
	Air source flow	mm3/min	≥0.5
	Power supply: three-phase AC		380V±10%,50Hz
	Air pressure	MPa	0.6
	Machine Weight	t	22
	Dimensions (L x W x H)	mm	8100*4890*5127

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines?
A: Please tell me your specifications, and we will help you select the best model, or you can choose the exact model yourself. Alternatively, you can send us the product drawings, and we will recommend the most suitable machines for your needs.
Q2: What are the main products of your company?
A: We specialize in all kinds of machines, such as CNC Lathe Machine , CNC Milling Machine, CNC Turning Machine, Vertical Machining Center, Horizontal Machining Center, Lathe Machines, Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
A: We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong. You are warmly welcome to visit us.
Q4. How do you transport it?
A: Provide Transportation Solution DDP/CIF/FOB/FCA.
Q5: What are the Payment Terms?
A: T/T, 30% initial payment when ordering, 70% balance payment before shipment.
Q6:What's the OMQ?
A: 1 set. (Only some low cost machines will be more than 1 set )
We want to know:
1. We strongly suggest you tell us the size, and material of your workpiece for our evaluation, if possible, better to send us a workpiece drawing so that we can recommend you the most suitable model.
2. If need a CIF Price, please kindly tell us the port of destination.

---
