Industrial Food Dry Powder Horizontal Ribbon Blender Machinery Mixer Machine Price

Product Description

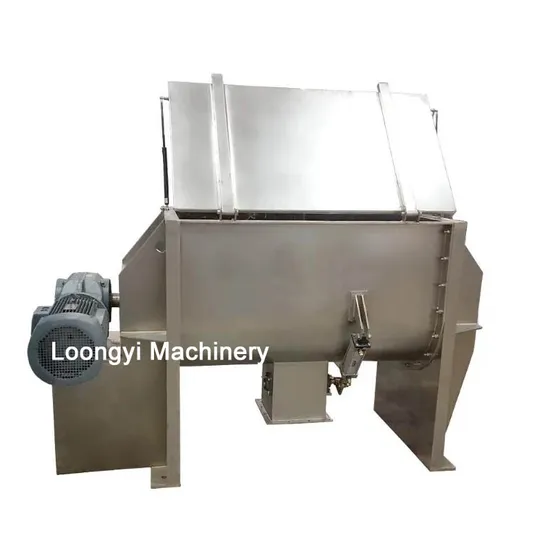

Product Description WLDH Series Horizontal Ribbon Mixer
Product Introduction: This machine is a new type of high efficiency, high precision of mixing equipment, widely used in pharmaceutical,
food, chemical, and other industries for a variety of powder or paste material of high uniformity mix.
Working Principle:
This machine by the mixing barrel, spiral agitating vane and transmission parts, such as spiral blade made of the
second floor, the outer spiral material from two side to the central pool,on both sides of the inner spiral material from
the central to shunt,make the material in a mixed mix, in a very short so as to achieve the high mixture uniformity. Product Parameters Technical Data:

Model	WLDH-100	WLDH-300	WLDH-500	WLDH-1000	WLDH-1500	WLDH-2000	WLDH-3000	WLDH-4000	WLDH-6000	WLDH-8000	WLDH-10000
Volume (L)	100	300	500	1000	1500	2000	3000	4000	6000	8000	10000
Loading capacity(L)	30-60	100-180	200-300	400-600	600-900	800-1200	1200-1800	1600-2400	2400-3600	3200-4800	4000-6000
Motor Powder(kw)	3	4	5.5	11	11	18.5	22	22	37	45	55
Overall Size (mm)	1080 × 758 × 615	1550 × 812 × 1015	1675 × 1142 × 1300	1970 × 1497 × 1550	2200 × 1470 × 1635	2480 × 1651 × 1805	2880 × 1896 × 2055	3026 × 1946 × 2205	3905 × 1882 × 2179	3978 × 2160 × 2516	4500 × 2270 × 2667
Equipment weight (kg)	330	780	955	1400	2000	2500	3300	3600	5300	6880	8900

Detailed Photos Product Pictures:

Company Profile
With more than 20 years of manufacturing experience, Jiangyin Loongyi Machinery Co.,ltd specialized in manufacturing
powder grinding machine, mixing machine, sifting machine, granulator machine, packing machine, drying machine,
conveying machine, slicing machine, cleaning machine and so on, which are widely used in foodstuff, chemical and other
industries,etc.

Since its foundation, Loongyi has always adhered with the principle of quality firstly and technology is life. The company
owns more than 100 employees, about 1000m2 of office space, cover about 9000m2 of manufacturing space.
With customer concentric idea as base, it takes every detail seriously in the process of production to assure high
performance and quality of each part and equipment as well as the stable operation in more than 80 countries
around the world. Our products have been exported to such countries and regions as USA,Canada, Europe, Japan,
Australia,Africa,South Asia,middle Asia. We also welcome OEM and ODM models. Our products are approved by CE and ISO.

Loongyi Machinery locates in Wuxi city, Jiangsu Province, China. It takes 30-40 minutes from Loongyi Machinery to Wuxi
railway station or Wuxi airport. And it takes 20 minutes from Wuxi station to Shanghai railway station or Shanghai airport
by high-speed railway, so transportation is very convenient.

Over these years, our company has made elaborate design and improvement,on the basis of absorbing features and
advantages of similar products both at home and abroad.
The products have won good reputation and praises among all customers, from at home and abroad,too.

We specialize in providing powder solutions.
From cleaning, slicing, drying of raw materials, to crushing, screening, mixing, and finally packaging.
We have a lot of successful powder project cases, such as spice powder line, cocoa powder line, sugar
powder line, seaweed powder line, besan flour line, chemical powder line and so on.
We have a professional technical team with over 10 years of experience.
Our engineers can design the overall system solution scheme according to your requirements.
FAQ To send you a detailed quotation of a suitable machine, could you please tell us:
Q1: What materials do you want to grind?
(Like chili, sugar, herbs...etc)

Q2: What's the size of your raw material?
(Such as 10 mm,15 mm...etc)

Q3: What capacity of the machine you need?
(Like 50 kg/hr, 300 kg/hr,500 kg/hr..etc)

Q4: What's the finished powder fineness you want to get?
(mesh, mm or micron)

Q5: What power supply do you use in your factory?-V,-Hz, 3 phase or single phase?
(Like 220 V , 50 Hz , single or 380 V, 60 Hz , 3 phase...etc)

---
