| US$100,000.00-350,000.00 | 1 piece (MOQ) |

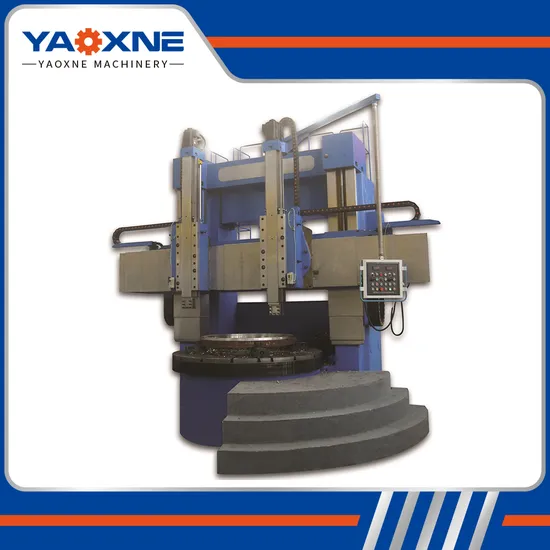

| Digital Display Double Column Vertical Lathe C5231 x 20/16 | |||
| Project | Main Parameters | ||
| Processing scope | Max.swing diameter | mm | 3150 |
| Max.height of processing | mm | 2000 | |
| X-axis travel | mm | -20~1730 | |
| Z-axis travel | mm | 1000 | |
| Beam travel | mm | 1650 | |
| Worktable | Worktable diameter | mm | 2830 |
| Max. Loading weight | T | 16 | |
| T-style slot quantities | No. | Four pairs (12 auxiliary slots) | |
| T-style slot size/space | mm | 26/175 | |
| Main transmission | Worktable rotation speed steps | Sixteen levels | |
| Worktable rotation speed range | rpm | 2-63 | |
| Main motor power | KW | 55 | |
| Max.torque of worktable | KN·m | 63 | |
| Vertical tool holder | Feed rate steps | Stepless | |
| Feed rate range of the vertical tool holder | mm/min | 0.1~1000 | |
| Fast moving speed | mm/min | 4000 | |
| Min. Step forward equivalent | mm | 0.001 | |
| Max.cutting force of vertical tool holder | KN | 35 | |
| Ram size | mm | 255×210 | |
| Max. height of tool bar section | mm | 50 | |
| Others | Beam lifting speed | mm/min | 350 |
| Beam lifting motor power | KW | 11 | |
| X-axis feed motor torque | KW | 4.3 (30N.m) | |
| Z-axis feed motor torque | KW | 3.5 (22N.m) | |
| Machine dimensions(L*W*H)(About) | mm | 6390×5200×6450 | |
| Machine weight(About) | T | 41 | |
