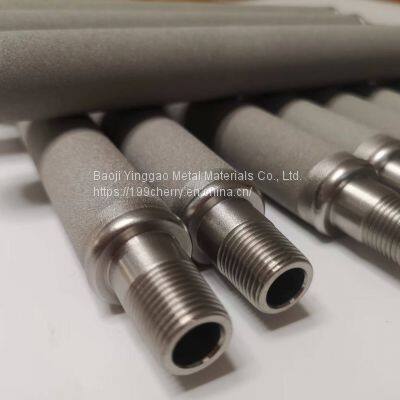

Sintered titanium rod filter for air filtration is a kind of industrial high-purity titanium powder as raw material, which is sintered at high temperature and high vacuum.
TopTiTech manufactures sintered metal powder filter cartridges in a wide range of materials, sizes and connections to meet the characteristics and configurations that customers need.
Sintered porous metal filters are manufactured from isostatic cool pressing and high temperature vacuum sintering. The micron rating and distribution of the pores can be controlled by the metal powder. They are ideal choice for process filtration applications where high strength and excellent corrosion and temperature resistance are required.
Parameter
Product name: sintered titanium rod filter for air filtration
Accuracy:0.22um－100um
Length: 10″, 12″, 20″, 30″
Outer diameter: φ30mm, φ0mm, φ60mm
Filter element interface: Threaded type (M20, M30, M36, M42, etc.), 222 type, 226 type
Working temperature:≤300℃(wet state)
High pressure difference: 0.6Mpa
Water flow: >600L/H (10″ filter element)
Features
1. High strength, good mechanical properties
2. High temperature and pressure resistance
3. Corrosion resistance
4. High permeability
5. Cleanable
6. Uniform pore distribution
7. Smooth outer surface
8. No unloading or shedding
9. Defined permeability and particle retention
Applications:
－Chemical & Petrochemical Industry
Corrosive liquids & gases
Air, nitrogen, carbon dioxide, argon
High temperature liquids, gases
Catalyst retention
Fluid bed reactors
Process steam
Cryogenic fluids
Solvents, ethylene glycol, polymers
－Pharmaceutical Industry
Flow control devices for medical equipment
Liquid drug delivery
Oxygenation for bioreactors
Fluid cooling filters
－Food & Beverage Industry
Carbon removal for decolorization operations
Bleaching clay filtration
Process steam filtration
－Instruments
Chromatography solvents
HPLC inlet protection
In-line filtration
－Gas-Liquid contacting/sparging
Carbonation
Oxygenation
Aeration
Hydrogenation
Dewatering Oil
>>
