Ck6136 Precision Bench Lathe Machine for Threading

Product Description

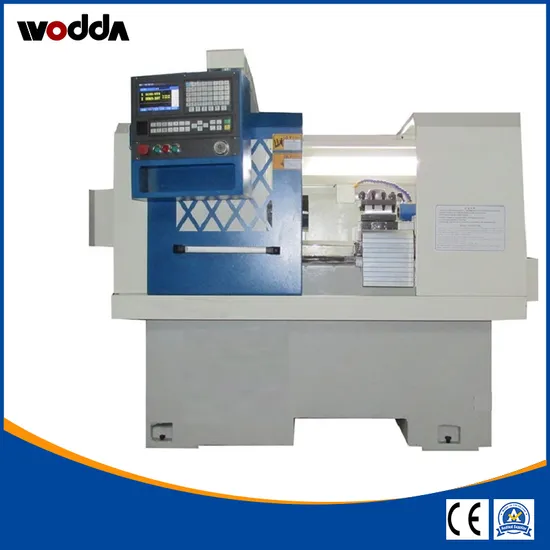

Picture:
CNC Lathe Application
cnc horizontal lathe turning machines price used in electrical appliances, instrumentation equipment industry, automobile, motorcycle accessories, fastener bearings, photographic equipment, film machinery, hardware watches and clocks, glasses, cultural and educational supplies, electrical machinery, valves, gas pipe fittings and other high-precision complex parts manufacturing , Is the hardware and mechanical processing industry the most efficient and efficient equipment.
CNC Lathe Features
1. Variable frequency stepless speed regulation
2. Servo system
3. Four-position electric tool holder

Model	CK6136
Max swing over bed	360mm
Max swing over cross slide	180mm
Max processing lenght	550/750/1000mm
X/Z axis travel	280/550mm
Spindle nose	A2-6
Spindle bore	48mm
Bar capacity	41mm
Max spindle speed	150-2500rpm
Chuck size	200mm
Spindle motor	5.5kw
X/Z axis repeatability	+/-0.005mm
X/Z axis feed motor torque	X:4Nm Z:6Nm
X/Z rapid traverse	X:8mm/min Z:10mm/min
Tailstock quill dia	60mm
Quill travel	100mm
Quill taper	MT4
Tool post type	4-position electric turret
Cutting tool size	20x20mm
Guide form	One shan one flat
Total power capacity	9KVA
Machine dimension	2000x1200x1620mm
N weight	1560kg

CNC Lathe Details
Package & Delivery
FAQ
Q: How about your machine quality?We are worry about the quality.
A: Shandong Woda Heavy Machinery Co.,Ltd focused on machinery for up to 20 years, is China's mature brand. We "quality of survival" management philosophy, more and more customers love and support, we have a field factory, on the quality, you are welcome to visit the field at any time.
Q:Whether the machine price can be more discount?
A: Shandong Woda Heavy Machinery Co.,Ltd welcome to consult at any time.we know .

Q:How about your manufactory in China ?
A:Shandong Woda Heavy Machinery Co.,Ltd is located in Tengzhou,Shandong province that is the leading area in China .
If you need more information about us we would like to talk with you.
If have any questions pls feel free to contact us via
mobile +8613346326288
