ESKA Manual Reset Temperature Switches 36TXE16 & 36TXE26 used for the protection against excessive temperatures

Product Details

Product Description

Product Description

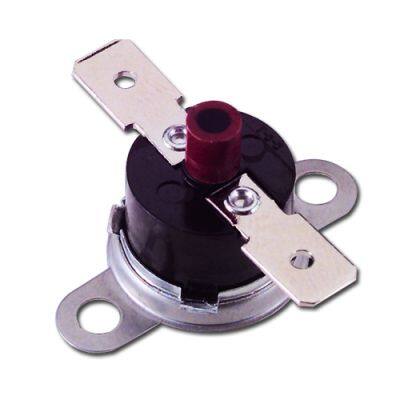

The performance of ESKA Manual Reset Temperature Switches 36TXE16 & 36TXE26 is based on an integral bimetallic element that will open the circuit according to defined ratings. The ESKA Manual Reset Temperature Switches 36TXE16 & 36TXE26 can be applied for the protection against excessive temperatures, unless an electric circuit needs to be interrupted permanently.
Features:
Rated current: 10 A / 15 A / 16 A
Rated voltage: AC 120 V / AC 250 V
Mounting options: Pot flange (36TXE16) / Docking flange (36TXE26)
Approvals: UL CSA VDE CE RoHS
Art. No. Vertical Topen (± 3°C)
36TXE26 611847 70
36TXE26 611889 80
36TXE26 611848 85
36TXE26 611888 90
36TXE26 611849 100
36TXE26 611890 110
36TXE26 611850 115
36TXE26 611891 120
36TXE26 611851 130
36TXE26 611892 140
36TXE26 611852 145
36TXE26 611893 150
36TXE26 611853 160
36TXE26 611894 170
36TXE26 611854 175
36TXE16 611855 70
36TXE16 611856 85
36TXE16 611857 100
36TXE16 611858 115
36TXE16 611859 130
36TXE16 611860 145
36TXE16 611861 160
36TXE16 611862 175

---
