Menstrual Pants Machine Product Description

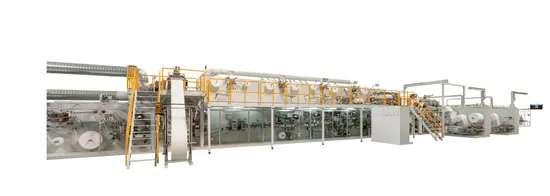

| CSG-APUP350 Full Servo Adult Pull up Pants Machine |
|
| Product Stucture |

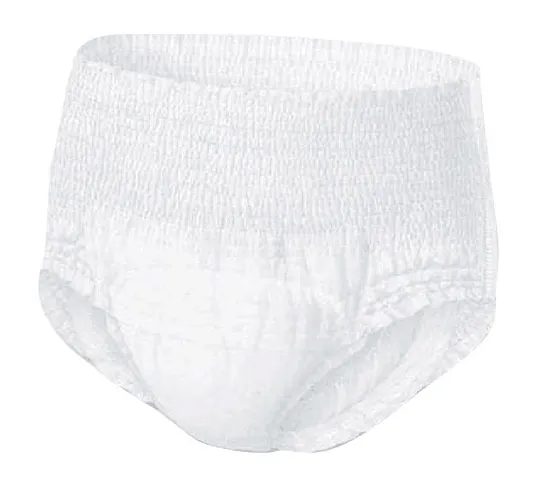

| 1 | 2-pcs type menstrual pants |
| Main Technical Parameters |
| 1 | Supply,3 phase,380V,50Hz |
| 2 | Power:500KW(Excluding hot melt applicator and Compressor) |
| 3 | Production speed:200/300/400pcs/min |
| 4 | Qualification:≥97% |
| 5 | Outside dimension(m):50 x 10 x 5.5 (L×W×H)( for reference) |
| Main Function and Features |
| (I)Mechanical part |
| 1 | Pulp SAP mixing product and laminating core product are compatible |
| 2 | High-density ultra-thin fluff core forming system |
| 3 | Waist Sealing:Ultrasonic sealing process, support for tension customization,soft feel,and good appearance |
| 4 | Waist Sealing:no glue laminating,Ultrasonic sealing process, improving softness and saving cost |
| 5 | Support elastic film waist making process |
| 6 | Can produce single individual package products |
| 7 | With web guiding system |
| 8 | Packing machine or stacker (Option) |
| 9 | Dust collection filter system (option) |
| (II)Electric part |
| 1 | Full servo motor drive and PLC control |
| 2 | One button for size change, quick and less waste |
| 3 | High-precision tension control system,active un-winding and auto-splicing system |
| 4 | i-MAS Intelligent equipment mangement and analysis system |
| 5 | Material auto-splicing end joint limit at 3m, and decrease material wastage |
| 6 | Material automatic inspect,broken and lost alarm system |
| 7 | Material picture ruled position application |
| 8 | Vision inspection system (option) |
| 9 | Elastic BTSR tension control system, single tension adjust(option) |
Sales Service
ZHEJIANG NEW YUHONG INTELLIGENT EQUIPMENT CO.,LTD
With nearly 30 years design and manufacturing of disposable hygiene machine( Sanitary napkin machine , Under pad machine , Adult & Baby diaper machine) , more than 30 sets production line per year, and provided thousands of machines to our customers around the world. Especial enjoyed the good reputation in China, South-east Asia, middle-east, and Europe.
