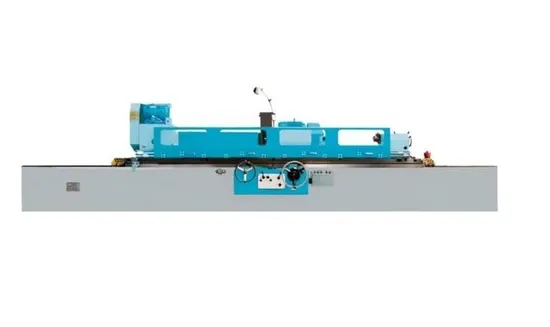

Cylindrical Grinding Machine M1350A/M1363/Mq1380A Metal Processing

Product Description

The horizontal feed of wheelhead is driven byhydraulic pressure to realize micro Automatic periodic feed and fast advance and regress.Alsocan do manually rough, fine feeding.
Universal workhead can be adjusted at any Anglewithin 90 degrees
counterclockwise to adapt to chuckgrinding internal and exteral conical workpiece.

Model No.		M1350A	M1363	MQ1380A
Item No.
General capacity
Max. length ground(O.D)		1500,2000,3000,4000 mm	2000,3000,4000,5000 mm	3000,4000,5000 mm
Center height		270 mm	370 mm	500 mm
Dia.Ground(O.D)		25~500 mm	30~630 mm	50~800 mm
Max. weight of work piece		2000 kg	3000 kg	3000 kg
Workhead
Center taper(MT)		6 MT	80 #	80 #
Spindle speed /Stepless		50HZ:10~100r/min	50HZ:6~60r/min	50HZ:5~50r/min
Wheelhead
Max. dimension of wheel(ODxWxlD)		750x75x305 mm	750x75x305 mm	900x75x305 mm
Wheel peripheral velocity		35 m/s	35 m/s	35 m/s
Hand feed per.rev		Rough:4 fine:0.5 mm	Rough:4 fine:0.5 mm	Rough:4 fine:0.5 mm
Hand feed per.gra		Rough:0.02 fine:0.0025 mm	Rough:0.02 fine:0.0025 mm	Rough:0.02 fine:0.0025 mm
Table
Max.swiveling angle of table	Clockwise	3°(1500)2°(2000,3000)1°(4000)	2°(2000)1°(3000,4000,5000)	1°(3000,4000,5000)
	Anticlockwise	6°(1500)5°(2000)3°(3000)2°(4000)	4°(2000)3°(3000)2°(4000)1.5°(5000)	3°(3000)2°(4000)1.5°(5000)
Longitudinal speed range of table		0.1~3 m/min	0.1~2.5 m/min	0.1~2.5 m/min
Tailstock
Center taper(MT)		6 MT	Metric 80 #	Metric 80 #
Quill travel		70 mm	70 mm	70 mm
Motor
Wheelhead motor power		15 kw	22 kw	22 kw
Workhead motor power		7.5 kw	15 kw	15 kw
Machine accuracy
Roundness		3(1500)5(2000,3000,4000)μm	5μm	5μm
Cylindricity		8(1500)10(2000,3000)15(4000)μm	10(2000,3000)15(4000,5000)μm	10(2000,3000)15(4000,5000)μm
Roughness		Ra0.32μm	Ra0.32μm	Ra0.32μm
Machine
Gross weight		11T(1500,2000)13T(3000)17T(4000)	18T(2000)22T(3000)23T(4000)26T(5000)	22T(3000)23T(4000) 26T(5000)
packing dimension(cm)		543X225X210(1500)	695X242X226(2000)	426x190x205(1500)
		583X225X210(2000)	890X242X226(3000)	530x190x205(2000)
		796X225X210(3000)	1100X242X226(4000)	1270X260X230(5000)
		996X225X210(4000)	1270X242X226(5000)

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
