Chcnav X13 Real Scene Lofting Rtk Precision Improvement

Product Description

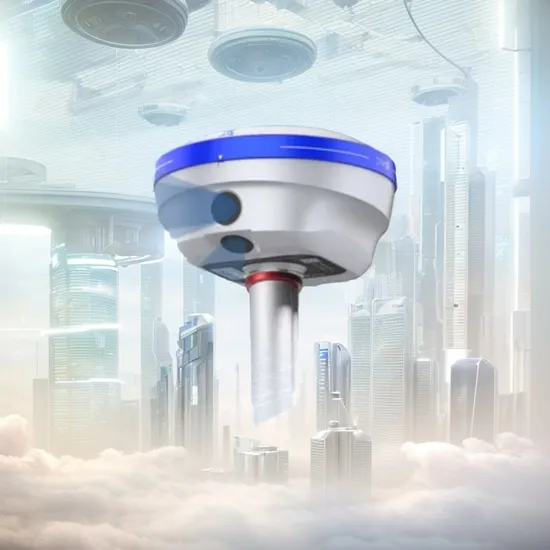

CHCNAV X13 RTK measuring instrument Real scene lofting RTK equipment High precision
Place of Origin:China
Brand Name:
CHCNAV
Model Number:
CHCNAV X13
Record storage:
8GB, support for external expansion 128G (U disk / TF card)
Endurance time:
the typical mobile station endurance is more than 17h
Field of view:
95 ± 3, wide angle double shot
Satellite system:
BDS + GPS + GLONASS + Galileo + QZSS + IRNSS + SBAS, with support for Beidou Generation III
Operating temperature:
-45ºC ~ + 75ºC
Wireless connection:
support for Wi-Fi data link
Real action RTK X13
CAD AR Real scene integration and lofting precision and more calm
450g light experience, 40% light, 50% less size
Cloud homology 3.0, the fixed rate increased from 85% to 96%
CAD is integrated into the AR real scene, and the overall lofting efficiency is improved by 40%
Pile foundation construction is coordinated in advance, finished at one time, and the efficiency is improved by 30%
The fifth generation Ultra-IMU inertial guide, accuracy increased by 30%
Mountain photovoltaic lofting, more than 400 points a day
CAD design drawing during construction, without RTK measurement feature points
Non-inductive wide Angle dual camera switch, immersive visual lofting
Light and excellent hardcore quality
Extreme light experience, 450g
Precision machining, health guide + inertial navigation + dual camera vision
106 mm x 55.6 mm, with a 50% size reduction
5th generation Ultra-IMU technology
The 5th generation high-precision Ultra-lMU inertial navigation technology is accurate, stable and convenient
Hand, shoulder, horizontal to the middle rod, habitual guide can be used
No initialization point is measurement
Do not look at the bubble accuracy is reliable
Accuracy is increased by 30%
Ttilt 60 measured
The Geodesic Pass 8.0 software
1.Homework in many scenes, everything is excellent
The third generation of self-developed "MetaCAD" two, three-dimensional integrated graphics engine, 200MBCAD base map in 8 seconds to open, with the map operation is more smooth.
2.Mountain photovoltaic lofting, more than 400 points a day: to ensure that the photovoltaic pile position equal lofting, improve the speed and accuracy, improve the efficiency by more than 50%.
3.Road mapping is more convenient: the use of fast Z-shaped measurement, without multiple cooperation or back and forth measurement, easy to complete the continuous measurement of multiple road side lines.
4.Direct control of the full station and measuring robot: support station setting and lofting, to achieve the single full station measurement, so that the total station measurement becomes simpler.
HCE600 Android professional measurement hand book under the strong light show clear, 36 months without lag.
1.The 5.5 " HD screen, with an average brightness of 600 nits, is 30% brighter than similar products and still visible in strong light.
2.Customize the background application cleaning program, use 36 months without lag.
3.The antenna 360 surround design, CORS does not drop, and more stable connection with the host.
4.Built-in 8000 mAh large capacity battery, a typical battery life of more than 14 hours.

---
