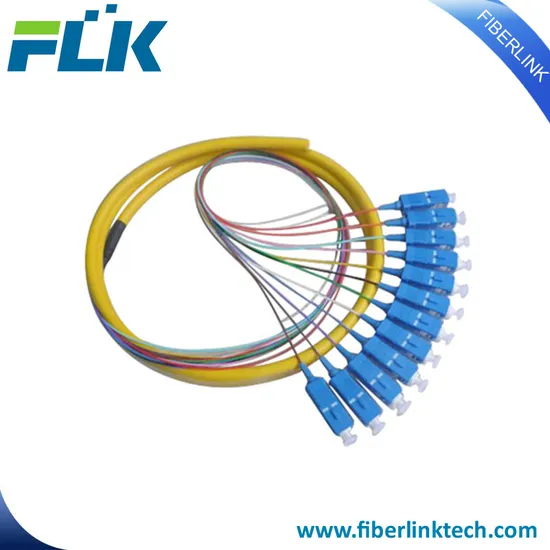

Optical Fiber Colorful Bundle Mutil-Cores Fan-out Pigtails Sc/LC/12 LSZH Fibers Pigtail

Product Description

Product Description
Bundle Fan-out Fiber Optic Pigtail is a piece of fiber optic cable with only one fiber optic connector on one side of the cable, there are single mode and multimode fiber optic pigtails, which can be with various types of fiber optic terminations such as SC, FC, ST, LC, MU, MT-RJ, MTP, MPO, etc.
Features
High precision LC connector series with competitive pricing
Provide high density mounting in any optical equipment
Excellent optical performance
Available for both SM, MM, simplex and duplex
0.9mm, 2.0mm, 3.0mm cable diameter optional
Applications
Telecommunication
Testing equipment
Long-haul telecommunication
LAN system
CATV systems
Specifications

Types	Single mode	Multi mode
Diameter (mm)	Ф0.9, Ф2.0, Ф3.0
Fiber cable	Simplex or Duplex available
Operating Wavelength	1310, 1550nm
Insertion Loss (dB)	≤ 0.3 (PC) ≤ 0.3 (UPC) ≤ 0.3 (APC)	≤ 0.5 (PC) ≤ 0.5 (UPC)
Return Loss (dB)	>= 45 (PC) >= 50 (UPC) >= 60 (APC)	>= 35 (PC) >= 40 (UPC)
Exchangeability	≤ 0.2 dB
Repeatability	≤ 0.2 dB
Operating Temperature	-40 to +75 ºC
Storage Temperature	-40 to +85 ºC

Company Profile
Product Display
Our Factory
Certifications
Packaging & Shipping
FAQ
Question:Can I have a sample before place an order?
Yes,of course we will provide free samples if value is cheap.but without shipping charges.
Question:What about the leadtime?
Around 7-14 days normally
Question:How about the MOQ?
500pcs normally per color for Fiber cable.consult sales if needed.
Question:Which mode of transportstion?
UPS/DHL/TNT/Fedex/Aramex/Sea/Air and so on.
Question:Can I put logo on the products?
Yes,of course,we do OEM and ODM aslo.
Question:what is the delivery terms?
EXW or FOB is our main delivery term

---
