Static Mixer High Efficiency Movable Inline Static Pipe Mixer Gas Liquid Mixing

Product Description

Static Mixing Motionless Mixers Inline Static Mixers Pipe Mixer for Sewage Treatment Plant
Static Mixer Description

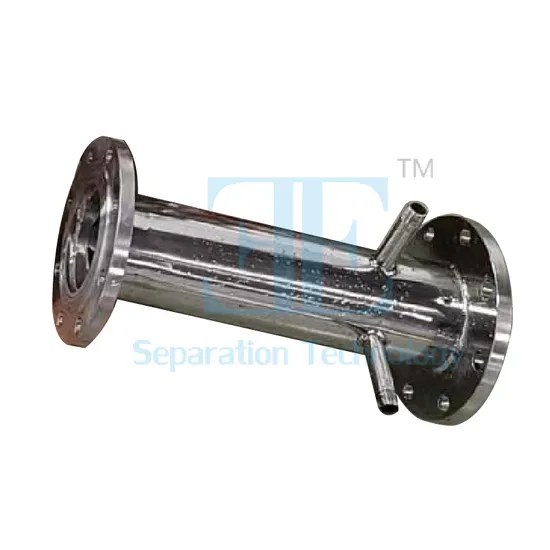

Static mixer is a device for the continuous mixing of fluid materials, without moving components. Normally the fluids to be mixed are liquid, but static mixers can also be used to mix gas streams, disperse gas into liquid or blend immiscible liquids. The energy needed for mixing comes from a loss in pressure as fluids flow through the static mixer. One design of static mixer is the plate-type mixer and another common device type consists of mixer elements contained in a cylindrical (tube) or squared housing. Mixer size can vary from about 6 mm to 6 meters diameter. Typical construction materials for static mixer components included stainless steel, polypropylene, Teflon, PVDF, PVC, CPVC and polyacetal.
Static Mixer Work Process
Static Mixer Technical Drawing
Static Mixer Advantages Static Mixer Details
Different Kinds of Static Mixer
