| US$5.00-29.00 | 1 Piece (MOQ) |
| General | |||
| Model | OCPP-80S | ||

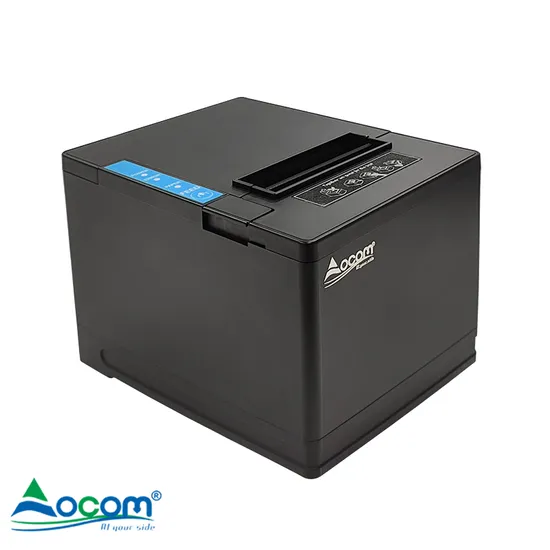

| Name | 80mm desktop thermal printer with auto cutter | ||
| Color | Black | ||
| Interface | USB/USB+Lan/USB+BT/ USB+WiFi/URL+WIFI/URL+BT | ||
| Power supply | Input:AC 100V-240V,50-60Hz,Output:DC 24V/2.5A | ||
| Cash drawer | DC 24V/1A | ||
| Printer head lifespan | 150KM | ||
| Cutter | Auto cutter | ||
| Sensors | Paper out, cover open, cutter jam,paper jam and black mark detection(Optional) | ||
| Accessories | Data cable,power adaptor,power cord,paper roller,CD,manual, Paper separator(optional) | ||
| OS supporting | Compatible with iOS/ Android/ Windows/Linux | ||
| Safety standards | CE ,FCC,Rohs etc | ||
| Printing capability | |||
| Printing method | Direct thermal line | ||
| Resolution | 203 DPI | ||
| Printing speed | 200mm/s (U/UR ) 260mm/s (UL/U+BT/ U+WIFI) 300mm/s (URL/ URL+BT/ URL+WIFI) | ||
| Print width | 72mm | ||
| Graphics printing | Supports bitmap download and print ( each bitmap size Max.20K) | ||
| Printing Command | Compatible with ESC/POS | ||
| Barcode and character | |||
| Barcode | 1D barcode: UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/ CODABAR/CODE93/CODE128 2D barcode:QR CODE(Single USB or UR solution no QR code function) | ||
| Character size | ANK character, Font: A: 12*24dots, 1.5(W)*3.0(H) mm FontB:9*17dots ,1.1(W)*2.1(H)mm Simplified/Traditional: 24*24dots, 3.0(W)*3.0(H)mm | ||
| support | ||
| User-defined language | PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) | ||
| Media | |||
| Paper type | Thermal roll paper | ||
| Paper width | 48mm/52mm/56mm/64mm/68mm/76mm/80mm (optional) | ||
| Paper Thickness | 0.06~0.08mm | ||
| Paper roll diameter | 80mm Max | ||
| Paper separator | support | ||
| Physical | |||
| Dimension | 180*142*136mm | ||
| Weight | 1.65kg | ||
| Package box | 228*215*165mm | ||
| 8 in carton | 475*445*358mm/15.65kg | ||
| Environment | |||
| Working temperature& humidity | 0 to 45 degrees centigrade, 10%~80% No condensation | ||
| Storage temperature& humidity | -20 to 60 degrees centigrade , 10%~90% No condensation |
