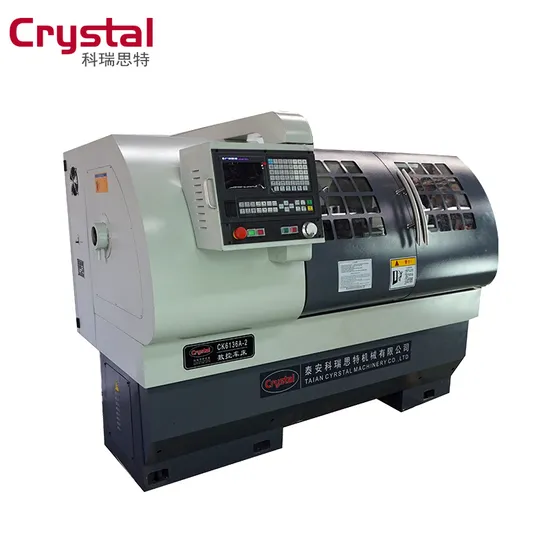

Digital Display for Lathe Mc Ck6136A-1 Chinese Machine Tools

US$9,800.00

1 Piece

US$9,650.00

2+ Pieces

Basic Info.

Model NO.

CK6136A

Guide Rail

Horizontal Guide Rail

Tool Holder

4/6/8 Positon Tool Turret

Power Source

Electric

Controlling Mode

CNC

Automatic Grade

Automatic

Setting Mode

Table

Precision

High Precision

Certification

GS, CE, ISO 9001

Condition

New

Name

CNC Lathe

Material

Cast Iron Bed

Max. Swim Over Bed

360mm

Max. Swing Over Carriage

190mm

Width of The Bed

330mm

Length of Work Piece

500/750/1000mm

Max. Size of Tool Post

20*20mm

Spindle Speed

150-2500rpm

Spindle Bore

60mm

Chuck Size

200mm

Transport Package

Wooden Package

Specification

CE, SGS, ISO

Trademark

Crystal

Origin

Shandong, China

HS Code

8458110090

Production Capacity

35 PCS/ Mounth

Product Description

digital display for lathe mc CK6136A-1 chinese machine tools
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
Main Features:
1.Frequency conversion stepless speed regulation
2.Higher working efficiency
3.Higher rigidity cast iron
4.Fully enclosed-safety
Standard Configurations

cnc lathe machine	CK6136A
Max. swim over bed	Φ360mm
Max. swim over carriage	Φ190mm
Max. length of work piece	500/750/1000mm
Width of the machine	330mm
Size of three-jaw chuck	200mm
Range of spindle speed	150-2500rpm
Spindle bore	Φ60mm
Taper of spindle bore	MT4
Stations of tool carrier	4/6/8 station tool turret
Max size of tool post	20x20mm
Min. setting unit of motor	(Z) long 0.001mm,(X) cross 0.001mm
Moving speed of post	(Z) long 8m/min,(X) cross 4m/min
Taper of tailstock quill	MT4
Max. range of tailstock quill	120mm
Motor power	5.5KW
Packing size(length ×width × height)	1850/2120/2370 mm×1400 mm×1700mm
Net weight	1500/1650/1750kg

Standard configuration:
1. System:GSK-928TDL
2. 3 jaw manual chuck
3. 4 station tool
4. Manual tailstock
5. Lighting system
6. Cooling system
7. Automatic lubrication system
8. 3 phase 380v 50Hz
Optional configuration:
1.Siemens system /Fanuc system
2.Hydraulic chuck/ pneumatic chuck
3.Hydraulic tailstock/ pneumatic tailstock
4.6-piece electric tool post/8- piece electric tool post/ Gang type tool
5.Auto bar feeder
