US$30,000.00-32,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Tool Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
T Slot(No./Width/Gap)
5/18/90mm
Max. Drilling Dia.(U Driller)
20mm
Max. Tapping Dia.(Standard/Optional)
M18
X/Y/Z Axes Travel
800/520/450mm
Distance From Spindle Nose to Table Face
120-570mm
Positioning Precision
0.003mm
Repeatable Positioning Precision
0.003mm
Tool Magazine
Slant Disc Type
Transport Package
Plywood Case/Steel Pallet
Specification
1500*1800*2100
Production Capacity
480 Unit/Year
Product Description

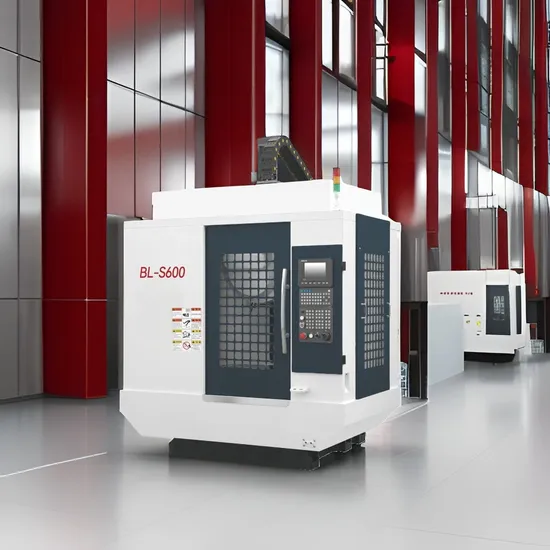

CNC vertical drilling tapping milling machining center
- Adopt HT300 class cast iron
- 3 axes adopt wide linear guideway, high rigidity
- 3 axes adopt big pre-stretched ball screw
- Adopt Slant Disc type 21T/16T tool magazine,fast tool changing
Details:
| Item | Specification | Unit | BL-S600 | BL-S800 |
| Capacity | Max. drilling dia.(U driller) | mm | Φ18 | Φ20 |
| Max. tapping dia. | mm | M16 | M18 |
| Worktable | Table size(L×W) | mm | 700×420 | 900×500 |
| T slot(NO./width/distance) | mm | 3/14/125 | 5/18/90 |
| Table max. loading | kg | 300 | 500 |
| Spindle | Spindle motor power | kw | 5.5/7.5 |
| Spindle type | / | BT30 |
| Spindle max. speed | rpm | Direct-drive 12000(opt.:20000) |
| Distance from spindle nose to table face | mm | 135~485 | 120~570 |
| Feeding axes | X/Y/Z axes travel | mm | 600/400/350 | 800/520/450 |
| Cutting feed speed | mm/min | 5~15000 |
| X/Y/Z axes rapid moving speed | m/min | 48/48/48 | 48/48/36 |
| Positioning precision | mm | ±0.003/300 |
| Repeatable positioning precision | mm | 0.003 |
| Tool magazine | Tool magazine type | / | Slant disc type |
| Tools qty | / | 21 | 16 |
| Tool changing time(tool to tool) | s | 1.6 | 1.8 |
| Max. tool dia.(full/(no adjacent tool) | mm | Φ50/Φ120 | Φ60/Φ120 |
| Others | Overall dimension(L×W×H) | mm | 1900×2100×2200 | 2400×1700×2100 |
| Weight | kg | 3000 | 4500 |
Main parts list:
| Item | Brand |
| Ball screw | TAIWAN-HIWIN/PMI |
| Linear guideway | TAIWAN-HIWIN/PMI |
| Ball screw bearing | SWEDEN SKF/GERMAN FAG |
| Spindle | TAIWAN |
| Tool magazine | TAIWAN-SANJET |
| Main electric parts | FRANCE-SCHNEIDER |
| Pneumatic parts | TAIWAN-AIRTAC |
| Lubrication pump | JAPAN-HERG |
Standard configuration: - SYNTEC 22MA CNC controller
Optional configuration: - FANUC 0I MF CNC controller
- 4th axes
Other models choice:
All our machines range:
About us:
>>
