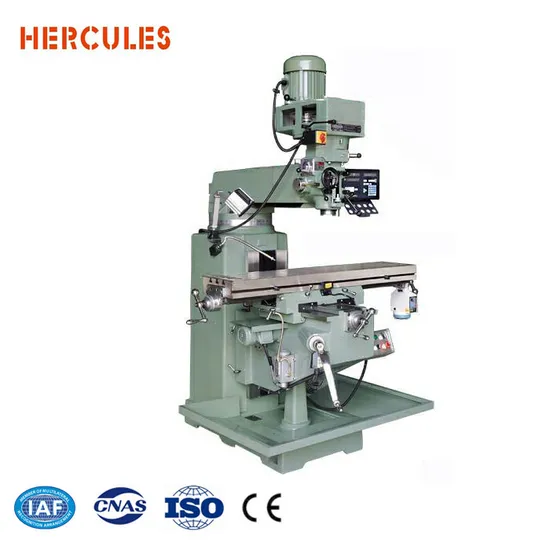

M2 X6323 Vertical Turret Type Milling Machine for Metal, Taiwan Spindle, CNC Machine, Cutting Machine, Lathe

Product Description

Advantage!!
1. High-frequency heat treatment for working table : hardness is over HRC48 and the harden thickness is up to 3mm.
2. All slide with high quality imported Turcite B, and well hand scraping with perfect match and oil containing , and the well lubrication ensure the long lasted for the machine and accuracy resistance.

3. HT250 grain casting with Meehanited standard processing .And materials strictly added with Nickel, brass, Chrome and Rare-earth , and the physical performance and rigidity of casting is well improved.
4. For the important parts like working table and saddle, we tempered twice during the machining.
5. Key parts(for high speed driving) for the head are imported from Taiwan , and the accuracy , rigidity and DB voice of the head with well performance .
! Specification of machine:

Model	M2V
	Precision High Accuracy Series
Table size(L*W)(mm)	1067x230
Max.load of table (kg)	300
X axis(mm)	720 660 with power feed
Y axis(mm)	330
Z axis (mm)	360
Work table T slot (No.-size*pitch) (mm)	3-15.88x63.5
Distance between spindle and table(mm)	50-410
Ram travel (mm)	380
Travel of spindle quill (mm)	127
Auto crossward feed(mm/rev)	0.04/0.08/0.15
Spindle speed(rpm)	80-5440 rpm 16steps
Spindle hole taper	R8 / NT30(optional)
Main Motor	3HP
Tilt angle for milling head	left and right±45º forward and backward±45º
Guiding tracks(X.Y.Z)	△△△
Dimension(L*W*H)(mm)	1550x1500x2100
Milling head	Round step milling head
Weight (kg)	950
Hercules Machinery Equipment Ltd.

Optional milling head :
Round step milling head ;
Square head with side brake milling head ;
Variable stepless milling head

---
