FIN CNC Boiler Drum Horizontal CNC Three-Spindle High-Speed Drilling Machine 780mm-1200mm

Product Description

FIN CNC Boiler Drum Horizontal CNC Three-Spindle High-Speed Drilling Machine 780mm-1200mm
Product Description:
HD1212/3 machine is mainly use to drilling hole of tube or boiler drum ;
Machine Purpose:

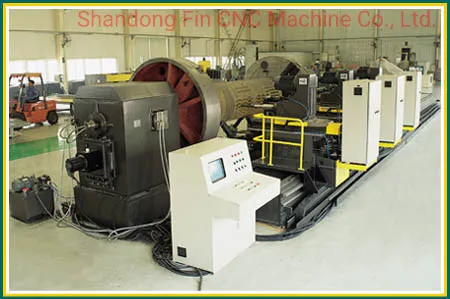

This Machine is mainly used to drill tube holes on header tube which used for boiler industry. It also could use special tools to make welding groove, greatly increase the hole's precision and drilling efficiency.
Machine Features:
The No.1 bed of this machine tool is mainly used to carry workpieces. One end of the bed is equipped with a fixed bed head, and two rectangular guide rails are laid on the plane of the bed. The bed tail can slide on it. Both the bed head and the bed tail are equipped with hydraulic three jaw chuck, which can realize the automatic centering and clamping of the drum. The clamping diameter range is Φ 780 - Φ 1200mm. The bed tail can move longitudinally to adapt to the 2-12m long drum.
The No.2 bed of this machine tool is mainly used to carry the longitudinal movement of drilling power head. The machine tool has three independent drilling power heads, which respectively rely on the longitudinal slide and the hydraulic slide to move longitudinally on the No. 2 bed.When the movement stops, it can be hydraulically locked.
The power head can realize the automatic control stroke through the hydraulic sliding table, and realize the automatic conversion of fast forward, work forward and fast backward. By adjusting the position of the non-contact switch block, it can also be realized that when the drill bit exits a certain distance at the end of the drilling, it automatically stops, without having to completely retract to the limit position, which saves man-hours and improves efficiency. The three power heads are independent and can realize automatic drilling with high efficiency and good precision. The spindle speed is adjusted by the frequency converter, and the speed is 80-200r/min, which can meet the processing requirements of different drill diameters and different drum materials. The maximum drilling diameter can reach Φ65mm, and the processing range is wide.
The front and rear supports of this machine tool can realize adaptive hydraulic clamping before and after the drum after the drum is clamped by the chuck, which improves the drilling rigidity of the drum.
Main Technical Specifications:

Workpiece size	Drum diameter range	Φ780-Φ1200mm
	Drum length range	2-12m
	Maximum wall thickness	50mm
	Maximum weight of workpiece	15T
	Maximum diameter of borehole	Φ65mm
	Hole spacing accuracy	Distance between adjacent holes:±1.0mm Farthest hole distance:±1.5mm
Power head of drilling spindle	Type	Hydraulic slide, Fast forward work forward fast backward automatic conversion
	Quantity	3
	Spindle taper hole	6
	Spindle speed	80-200r/min
	Spindle stroke	500mm
	spindle feed speed (hydraulic stepless)	10-200mm/min
	Spindle motor power	3x7.5kW
X-axis positioning accuracy		0.2mm
Working temperature of hydraulic oil		≤60ºC
Laser alignment device		Adjust hole group position according to weld position
Workpiece rotation speed		0~2.8r/min
Moving speed of slide		0~10m/min
Power of tail seat drive motor		2.2kW
Servo motor power of slide drive		3X2kW
Cooling pump motor power		450W
Chip conveyor drive motor power		750W
Height between chuck center and ground		About 1570mm
Machine tool overall dimension (L x W x H)		About 22x5x2.5m

List of the KeyOutsourcedComponents:

NO	Name	Brand	Country
1	linear guide rail	HIWIN/PMI	Taiwan China
2	Precision reducer and rack and pinion pair	ATLANTA	Germany
3	Numerical control system	Siemens 808D	Germany
4	servo motor	Siemens	Germany
5	Slide drive servo motor and driver	Siemens	Germany
6	Frequency converter	Siemens	Germany
7	Hydraulic pump	justmark	Taiwan,China
8	Hydraulic valve	ATOS/Justmark	Italy / Taiwan, China
9	Drag chain	Igus	Germany
10	Button, indicator light and other main electrical components	Schneider	France

Note: The above is our fixed supplier. It's subject to be replaced by same quality components of other brand if the above supplier can't supply the components in case of any special matter.
Work Environment:
1).Power supply: 3 phase 4 lines 380±10%V 50±1HZ
2).Compressed air pressure: ≥0.5MPa
3).Temperature: 0-40°C
4).Humidity: ≤75%
