| ITEM # | DESCRIPTION & SPECIFICATIONS |

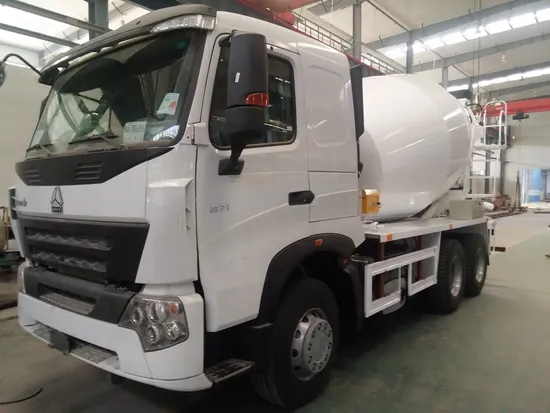

| Chassis | HOWO 8X4 14 m3 concrete mixer truck |
| Model :ZZ1317N3641W |
| Engine: WD615.47, 371hp, 273kw/2200rpm 9726cc displacement, EURO II Emission standared |
| Transmission:HW19710, 10Forwards & 2 reverse, manual gearbox |
| Steering:ZF8118 German hydraulic steering with power assistance (LHD) |
| Cab:HW76, with single bed & A/C Others: standard |
| color: white |
| FrontAxle:HF9 with drum brake 9000kg loading capacity |
| RearAxle:HC16 double-speed reduction 16000kgx2 loading capacity |
| Tires:13R22.5,Radial tubeless tire, 11 units(10 tires+1 spare tire) |
| Fuel tank: 400L |
| Wheel base:3625+1350mm |
| overall size:8950X2496X3950mm |
| Drum | Geometric volume: 13.5m3 |
| Agitating volume: 8m3 |
| Speed of mixing barrel:0-16r/min |
| Residual rate of discharge: <0.5% |
| water tank capacity: 400L |
| Max. dimension of hopper: 980mm |
Reducer from Italy Bonfiglioli/577L
Motor and Hydraulic Pump from USA EATON |
