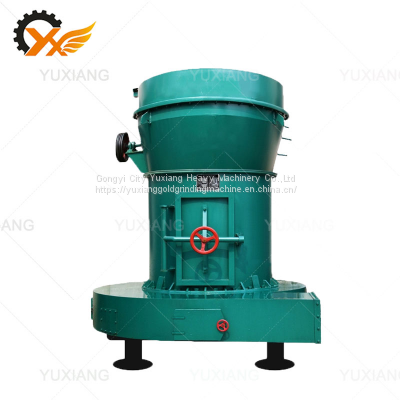

High Quality Mine Raymond Mill Roller Dolomite Dry Calcium Carbonate Milling Machine
Raymond mill
Brief Introduction
Raymond mill adopts the advanced structure of the same kind of products at home and abroad, and based on the updated and improved design in the same industry, the equipment is more efficient than the ball mill, low power consumption, small floor area, small one-time investment.
Application
Raymond mill is widely used for calcite, potash feldspar, talc, marble, limestone, dolomite, gemstone, lime, active clay, activated carbon, kaolin, cement, phosphate rock, glass, thermal insulation materials and so on.
Working of Principle
The material is added into the machine, depending on the grinding roller device, due to the centrifugal force during rotaiton, the grinding roller swings outward and presses tightly on the grinding ring, and the purpose of crushing the material is achieved due to the rolling of the grinding roller.
model
| Roller number
(pcs)
| Roller size
(mm)
| Inner diameter&height of ring(mm)
| Max feed size
(mm)
| capacity
(t/h)
| power
(kw)
| weight
(t)
| Overrall dimensions
(mm)
|
3R1510
| 3
| 150*100
| 570*100
| 15
| 0.3-1.2
| 7.5
| 2
| 3200*2100*3800
|
3R2115
| 3
| 210*150
| 630*150
| 15
| 0.4-1.6
| 15
| 3.6
| 4500*2800*5800
|
3R2615
| 3
| 260*150
| 780*150
| 20
| 0.8-2.5
| 18.5
| 4.2
| 5650*3305*3950
|
3R2715
| 3
| 270*150
| 830*150
| 20
| 0.9-2.8
| 22
| 4.8
| 5600*3400*5900
|
3R3015
| 3
| 300*150
| 875*150
| 20
| 1.2-3.5
| 30
| 5.3
| 5700*3500*5900
|
3R3016
| 4
| 300*160
| 890*160
| 20
| 1.2-4
| 30
| 8.5
| 6500*4100*5200
|
3R3216
| 4
| 320*160
| 970*160
| 25
| 1.8-4.5
| 37
| 15
| 9900*5800*10580
|
3R4121
| 5
| 410*210
| 1280*210
| 30
| 3-9.5
| 75
| 24
| 7900*8000*9700
|
The structure of the Raymond mill is mainly composed of main engine, analyzer, fan, finished cyclone separator, micro-powder cyclone separator and air duct.
Features of Raymond Mill
1.The machine is of vertical structure, occupies a small area,and has a strong system. It can form an independent production system from rough processing of raw material to conveying to powder making and final packaging.
2. Compared with other grinding equipment, the sieving rate is up to 99%.
3. The transmission device of the main engine adopts airtight gear box and belt wheel, which is stable in transmission and reliable in operation.
4. The important parts are made of high quality castings and profiles, and the process is fine, ensuring the durability of the while set of equipemnt.
5. The electrical system of Raymond mill adopts centralized control, and the model selection is
advanced,reasonable and highly automated.
>>
