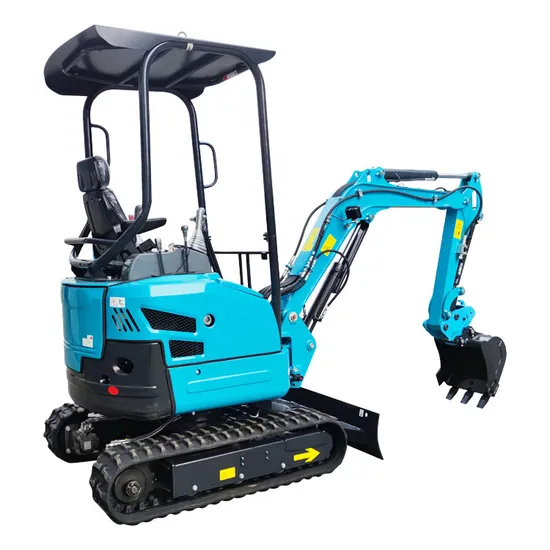

| QLN-17 Pro | ||
| Overall size | Unit | Standard |
| Total Length | mm | 3300 |
| Total Width | mm | 1110 |
| Total Height | mm | 2360 |
| Bulldozer blade Width | mm | 1110 |
| Bulldozer blade Height | mm | 270 |
| Clawler center distance | mm | 883 |
| Boom height | mm | 2635 |
| Distance from the center of rotation to the tail of the crawler | mm | 745 |
| Crawler width | mm | 230 |
| Standard bucket width (With/without edge tooth) | mm | 440(400) |
| Clawler length | mm | 1450 |
| Wheel spacing | mm | 1120 |
| Max. Digging Height | mm | 3310 |
| Max. Dumping Height | mm | 2370 |
| Max. Digging Depth | mm | 2120 |
| Maximum depth of vertical arm excavation | mm | 1535 |
| Max.Digging distance | mm | 3640 |
| Mini. Turning radius of front end | mm | 1660 |
| Minimum gyration radius of rear end | mm | 715 |
| Max.Digging distance on the ground | mm | 3570 |
| Max.Bulldozing height | mm | 260 |
| Max.Bulldozing depth | mm | 190 |
| The bucket moves horizontally to the left | mm | 480 |
| The bucket moves horizontally to the right | mm | 410 |
| Operating Weight | kg | 1700 |
| Bucket Capacity | m³ | 0.04 |
| Engine | | Kubota |
| Displacement | L(cc) | 0.898 |
| Rated Power | KW/rpm | 11.8 |
| Swing speed | r/min | 9 |
| Swing angle | ° | 55(53) |
| Gradeability | ° | 58(30) |
| Ground pressure | kpa | 27 |
| Bucket digging force | KN | 13.8 |
| Fuel tank capacity | L | 18 |
