Hot Selling New Design Optic Fiber Splice Enclosure Distribution Box

Product Description

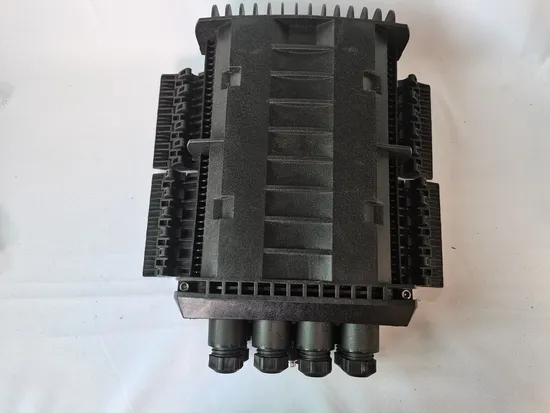

Hot Selling New Design Optic Fiber Splice Enclosure Distribution Box
FLK-MSC-325 Mechanical Splice Enclosures are designed for exterior installation including in manholes, mounted on outside walls, on top of poles, or most other typical cable joint locations, mechanical splice enclosure is an economical solution for fibre optic splice enclosures. The basic unit offers a 48-fibres capacity with storage of excess fibre, and larger units offer up to 288 fibers capacity.
The special design mechanical splice enclosure has a fully mechanical locking system which is durable through repeated opening and closing and is simple and easy to actuate. No dedicated tooling is required for assembling the enclosures beyond those found in any splice tool kit. The splice trays will accept a variety of fusion and mechanical splice protectors, including heat shrink fusion splice protectors and Fibrlock mechanical splices.
Features
Water-proof design with IP-68 Protection level.
Integrated with flap-up splice cassette and adaptor holder.
Impact test: IK10, Pull Force: 100N, Full rugged design
All stainless metal plate and anti-rusting bolts,nuts.
Fiber bend radius control more than 40mm.
Full mechanical sealing mechanism
Full rugged design for underground, pole/wall mount
Stainless steel mounting brackets
2* Min-span cable ports for uncut cable (10-17.5mm)
6* Mechanical glands for distribution cable (8-17.5mm)
High density capacity Max. 288 cable splicing
Applications
Widely used in FTTH access network
Telecommunication networks
CATV networks
Data communications networks
Local area networks
Direct buried, underground, hand-holes, duct mountig, wall mounting, pole mounting.
Specifications

Part No.	FLK-MSC-325S	Part No.	FLK-MSC-325C
Inner function	Used for Direct-splicing	Inner function	Used for 2x1*8 Cassette splitters
Dimension	395×245×130 mm	Dimension	395×245×130 mm
Materials	PC+ABS	Materials	PC+ABS
Mid-span Cable ports	2* for uncut cable of 10-17.5mm	Mid-span Cable ports	2* for uncut cable of 10-17.5mm
Output Cable ports	6*for cable of 8-17.5mm	Output Cable ports	6*for cable of 8-17.5mm
Splice tray	24 Fibers	Cassette Splitter	2x1*8 Cassette splitters
Number of Splice trays	1-12pcs	Number of Splice trays	N/A
Max. Splice capacity	48-288 FO	Max. Splice capacity	16 FO
Mounting type	Wall, pole mount or Aerial	Mounting type	Wall, pole mount or Aerial
Sealing Type	Mechanical	Sealing Type	Mechanical

Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, cable tube, wreach, cover holder, rubber seal for cable entrance.
Optional Accessories
1.Wall-mounted installation
According to the size of table 1 of hanging wall with percussion drill play two holes on the wall, knock into the metal tube, will be installed back the case according to the punching position on the wall, and completely fixed screw.
2.Pole-mounted installation
Fix 1 set of the easy pole ring to the Telecom pole.
