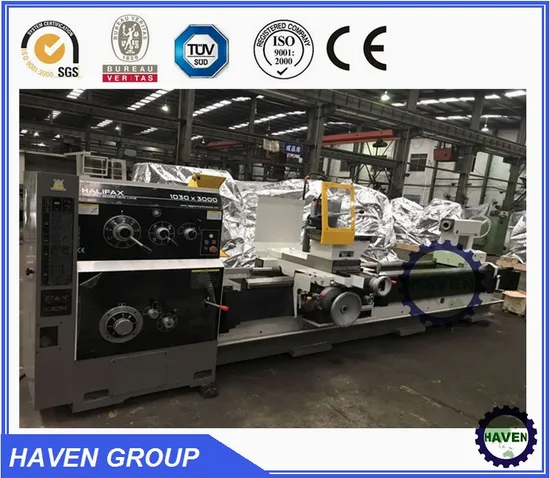

CW62103C/3000 Conventional Horizontal Lathe Machine

Product Description

CW62103C/3000 Conventional Lathe Machine
Main feature:
The lathe machine can perform to turn end face, cylindrical surface and internal holes of various parts as well as metric, inch, module, and pitch threads. The top slides can be operated indivedually by power for cutting short taper surface also., can be turned auto through compound movement combining longitudinal feed with top slide feed, moreover, the machiens may be used for drilling, boring and trepanning.
Standard accessories: 4 jaw chuck diameter is 500 mm;dead center; center sleeve ;reduction sleeve;working lamp;
coolant system;tools and tool box;
Main specification:

Item	Unit	Spec./Model
		CW61103C CW62103C	CW61123C CW62123C	CW61143C CW62143C	CW61163C CW62163C	CW61183C CW62183C
Swing in bed	mm	1030	1230	1430	1630	1830
Swing in gap	mm	1200	1400	1600	1800	2000
Swing over cross slide	mm	700	900	1100	1240	1440
Distance between centers	mm	1500,2000,3000,4500,6000
Length in gap from face plate	mm	380
Spindle nose		C11 or D11
Spindle bore	mm	105,130
Spindle speed	rpm/steps	10-800/18 7-576/18 6-480/18
Cross slide travel	mm	615 715 815 915
Top rest travel	mm	225 300
Rapid traverse	mm/min	Z:3200; X:1400
Quill diameter	mm	120
Quill travel	mm	270
Quill taper		MT6
Bed width	mm	610
Metric threads	mm/kinds	1-240/53
Inch threads	tpi/kinds	30-2/31
Module threads	mm/kinds	0.25-60/42
Diametral pitch threads	tpi/kinds	60-0.5/47
longitudinal feeds	mm/r	0.07-16.72
Main motor power	kw	11

---
