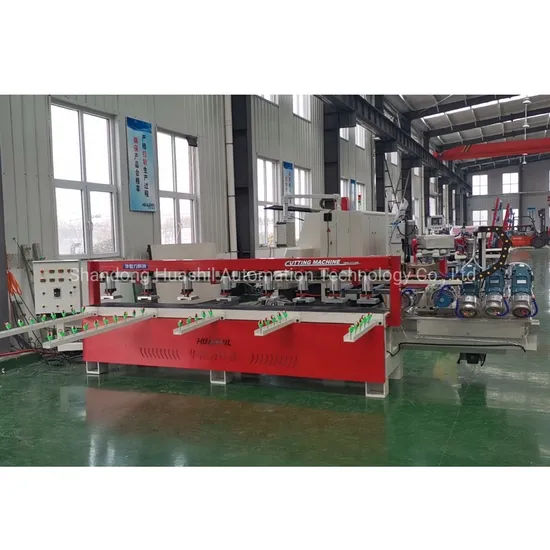

Remote Control 45 Degree Straight Line Sintered Stone Tile Porcelain Quartz Stone Edging Grinding Chamfering Machine

Product Description

Product Parameters

The number of motors	5
Frame	Steel
Weight (gross weight)	2300KG
Linear guide/slider	T-win
Machine size	5550*2800*1500mm
Processing size	30-3200mm
Feeding Speeds	0.7-3m/min
Processing thickness	3-20mm
Pressure	0.6-0.8pa
Voltage	380v/50Hz/3P
Power	16.3KW

Detailed Photos

No.1	No.2	No.3	No.4	No.5
Resin wheel 120mesh	Saw blade Diameter:180M	Diamond wheel 60mesh	Resin wheel120mesh	Special-shaped wheel

Edging Effect
Our Advantages

Flat motor structure, stable chamfer does not break edge. The integrated positioning baffle is lifted by the bishaft cylinder, with strong stability and good accuracy. Independent cylinder control pressure block type pressure rod, firmly lock the sintered stone does not run off. Can be fixed more than 30mm plate, thick plate plate universal, firm and reliable. Frequency conversion speed regulating drive grinding head left and right movement, suitable for different speed requirements. Remote control structure, simple operation, convenient use, no special training, water, electricity, gas can be used. Oil immersed 30 linear guide rail, simple maintenance, stable operation. The unique smoothing function, suitable for different cutting methods of sintered stone, can achieve the smoothing, 45 degrees chamfering, crabapple edge, broom-finish, safety edge and other functional requirements. 5 Grinding wheel with low consumables.
Application Scenarios

Certifications

Company Profile
Shandong Huashil Automation Technology Co., LTD., is a set of mechanical equipment automation research and development, manufacturing, sales in one of the high-tech manufacturing enterprises,mainly research and development production of a full set of glass deep processing intelligent equipment,such as the glass loading and cutting machine,glass cutting line,glass shuttle warehouse intelligent chip trimming system,glass edging machine,glass double-sided edging machine and so on.
We have a wealth of mechanical automation equipment production experience, production capacity, technological level and comprehensive economic strength in the same industry in the forefront of the domestic industry, intelligent automation equipment research and development, material control, equipment performance and modeling has been in the domestic leading level, a number of techniques. have filled the domestic blank. The good after - sales service and reasonable price, for a long time to win the customer's praise. In line with the principle of "good faith first, customer satisfaction", our company has established long-term cooperative relations with many enterprises.

---
